Cartilage: Structure, Mechanical Properties, and Biological Functions
Cartilage is a specialized connective tissue essential for providing structural support, flexibility, and cushioning throughout the body. From keeping the airway open to enabling smooth joint movement, this rigid yet resilient tissue performs critical mechanical roles. Unlike many other tissues, cartilage is characterized by its unique composition and a notable lack of blood vessels and nerves, which significantly influences how it functions and heals.
At the cellular level, cartilage is composed of chondrocytes—specialized cells that produce a dense extracellular matrix. This matrix consists of a collagenous framework, elastin fibers, and a ground substance rich in proteoglycans. Depending on the ratio of these components, cartilage is categorized into three distinct types.
Types of Cartilage
The three primary types of cartilage differ in their cellular density and the composition of their matrix, which determines their specific function in the body:
- Elastic Cartilage: Contains a high density of cells with minimal intercellular space. It is found in areas requiring flexibility, such as the external ear flaps and parts of the larynx.
- Hyaline Cartilage: The most common form, featuring fewer cells and more intercellular space than elastic cartilage. It is located in the nose, trachea, ears, and smaller respiratory tubes.
- Fibrocartilage: Possesses the fewest cells and the most intercellular space. This durable type is found in the spine and the menisci of the knee.
Key Facts
- Avascular Nature: Cartilage generally lacks blood vessels and nerves, making it insensitive to pain.
- Nutrient Diffusion: Chondrocytes receive nutrients via diffusion, often aided by the fluid flow generated during tissue compression or flexion.
- Slow Recovery: Due to its slow matrix turnover and lack of blood supply, cartilage repairs itself very slowly compared to other tissues.
- Immunological Barrier: The cartilage matrix prevents the entry of lymphocytes and immunoglobulins, allowing for transplantation without typical tissue rejection.
- Structural Support: Its rigidity allows it to hold open bodily tubes, such as the cricoid cartilage and carina in the trachea.
Mechanical Properties of Articular Cartilage

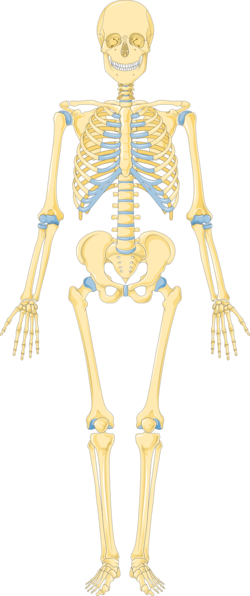

Articular cartilage, the tissue covering the ends of bones in load-bearing joints like the hip and knee, is studied extensively for its viscoelastic properties—meaning it exhibits both viscous and elastic characteristics when deformed.
Stiffness and Strain
Researchers use confined compression tests to determine the tissue's stiffness. The aggregate modulus (stiffness at equilibrium when fluid flow stops) typically ranges from 0.5 to 0.9 MPa, while the Young's Modulus (a measure of strain under stress) typically ranges from 0.45 to 0.80 MPa.
Permeability and Fluid Flow
Permeability refers to the resistance to fluid flow through the matrix. In articular cartilage, permeability is generally between 10^-15 and 10^-16 m^4/Ns. This value is not uniform; it is highest near the joint surface and lowest in the "deep zone" near the bone. Permeability also decreases as the load on the tissue increases.
Poisson's Ratio and Anisotropy
While once thought to be incompressible (Poisson's ratio of 0.5), research shows that human articular cartilage actually has a Poisson's ratio of approximately 0.4 or lower. These mechanical properties are anisotropic, meaning they vary depending on the direction of the applied load, and can be influenced by age and the concentration of water and glucosaminoglycans.
Biological Interfaces and Lubrication
Cartilage acts as a critical gradient material between soft tissues and hard bone. This transition prevents high stress concentrations that would otherwise lead to material failure over millions of loading cycles. For instance, while human bone has an elastic modulus of roughly 20 GPa, softer cartilage regions are only 0.5 to 0.9 MPa. A smooth gradient ensures stresses are distributed evenly.
To reduce wear and friction, the body utilizes lubricin, a glycoprotein found in both the cartilage and synovial fluid that provides essential bio-lubrication.
Repair and Clinical Significance
Cartilage has very limited self-repair capabilities. Because chondrocytes are trapped in small cavities called lacunae, they cannot migrate to the site of an injury. Furthermore, the lack of blood supply in hyaline cartilage slows the deposition of new matrix. Healing is further complicated by inflammation involving mast cells and M1/M2 macrophages.
Common Cartilage Conditions
- Traumatic Rupture: Common in the knee, often affecting the meniscus (fibrocartilage).
- Costochondritis: Inflammation of the rib cartilage resulting in chest pain.
- Chondrodystrophies: Diseases that disturb the growth and ossification of cartilage.
- Tumors: Benign tumors are known as chondroma, while malignant versions are chondrosarcoma.
Cartilage Across Species
While most familiar in humans, cartilage-like tissues appear across the animal kingdom. Cartilaginous fish (sharks, rays, and chimaeras) possess skeletons made entirely of cartilage. Some invertebrates, including horseshoe crabs (arthropods), cephalopods (mollusks), and sabellid polychaetes (annelids), also possess cartilage-like tissues based on fibrillar collagen.
| Type | Cell Density | Intercellular Space | Primary Locations |
|---|---|---|---|
| Elastic | High | Low | External ear, larynx |
| Hyaline | Medium | Medium | Nose, trachea, respiratory tubes |
| Fibrous | Low | High | Spine, knee menisci |
Frequently Asked Questions
Why does cartilage take so long to heal?
Cartilage heals slowly because it lacks a direct blood supply (avascular) and its specialized cells, chondrocytes, are locked in lacunae, preventing them from migrating to damaged areas to begin repairs.
What is the difference between the meniscus and articular cartilage?
The meniscus is a specific structure made of fibrocartilage, whereas articular cartilage is the hyaline cartilage that coats the ends of bones in a joint. Many athletic injuries referred to as "cartilage damage" specifically involve the meniscus.
How do chondrocytes get nutrients without blood vessels?
Nutrients reach chondrocytes through diffusion. This process is enhanced by the physical compression and flexion of the cartilage, which pumps fluid through the matrix.
Can cartilage be transplanted between people?
Yes. Because the cartilage matrix acts as a barrier that prevents lymphocytes and immunoglobulins from entering, cartilage can often be transplanted from one individual to another without the risk of tissue rejection.
What is the role of lubricin in joints?
Lubricin is a glycoprotein that provides bio-lubrication and wear protection, reducing friction between cartilage surfaces during movement.
