Track Gauge: The Science and History of Railway Rail Spacing
In the world of rail transport, the distance between the two parallel rails of a track is a fundamental measurement known as track gauge. This dimension is critical because every vehicle operating on a rail network must possess wheelsets that are perfectly compatible with the specific gauge of the track. While it may seem like a simple measurement, the variety of gauges used globally creates significant logistical challenges, often acting as a barrier to seamless international rail operations.
The term itself originates from the physical "gauge"—a metal bar with precisely positioned lugs used by track crews to ensure the distance between rails remains within strict tolerances. To maintain accuracy, the gauge is typically measured at a specific depth below the top of the rail head, usually between 12.7 mm and 15.9 mm, to account for sloping rail sides and worn corners.
Key Facts
- Standard Gauge: The most common global measurement, defined as 1,435 mm (4 ft 8½ in).
- Break of Gauge: A logistical bottleneck occurring when two different rail systems meet, requiring cargo or passengers to be transferred.
- Loading Gauge: The two-dimensional profile that defines the maximum size of a vehicle and its load.
- Structure Gauge: The boundary that ensures bridges and platforms do not encroach on the track area.
- Dual Gauge: The use of multiple rails to allow trains of different gauges to use the same track.
The Evolution of Rail Standards
In the early 19th century, railway gauges were highly inconsistent. As early wagons were pulled by horses from mines to waterways, tracks were built to suit specific local needs. For example, the Penydarren Tramroad used a 4 ft 4 in (1,321 mm) spacing, while other early lines in Scotland and Cornwall utilized various measurements ranging from 4 ft to 4 ft 6½ in.
The Rise of Standard Gauge
The landscape changed with the development of the locomotive. George Stephenson, a pioneer in locomotive design, utilized a 4 ft 8 in (1,422 mm) gauge on the Killingworth Wagonway. When the Stockton and Darlington Railway opened in 1825, it adopted this same measurement. The success of this gauge was cemented by the Liverpool and Manchester Railway in 1830, which eventually widened the measurement to 1,435 mm (4 ft 8½ in), establishing what we now call "standard gauge."
The Broad Gauge Conflict
Not all engineers agreed with the standard. Isambard Kingdom Brunel, a renowned engineer, opted for a much wider broad gauge of 7 ft 1¼ in (2,140 mm) for the Great Western Railway to provide greater stability. However, as the need for interconnected transport grew, the "break-of-gauge" between standard and broad lines became a major inefficiency. This led to the Regulating the Gauge of Railways Act 1846, which eventually paved the way for the total conversion of the broad gauge to standard gauge by 1892.
Global Gauge Classifications
Modern railways are generally categorized into three main types based on their width:
- Standard Gauge: 1,435 mm. The dominant global standard, used by approximately 60.6% of the world's rail installation.
- Broad Gauge: Wider than standard. This includes the 1,520 mm gauge used in Russia and Mongolia, and the 1,600 mm gauge used in Ireland.
- Narrow Gauge: Narrower than standard. These are often used in space-restricted environments like mines or for cost-effective rural lines. Examples include the 1,000 mm (metre gauge) and very narrow industrial gauges under 610 mm.
Comparison of Major Railway Gauges
| Gauge Name | Measurement (mm) | Measurement (ft/in) | Typical Use/Location |
|---|---|---|---|
| Standard Gauge | 1,435 mm | 4 ft 8½ in | Global Standard |
| Russian/Mongolian | 1,520 mm | 4 ft 11⅝ in | Russia, Mongolia, Ukraine |
| Metre Gauge | 1,000 mm | 3 ft 3⅘ in | Various industrial/regional lines |
| Irish Gauge | 1,600 mm | 5 ft 3 in | Ireland |
| Broad Gauge (Brunel) | 2,140 mm | 7 ft 1¼ in | Historical UK (GWR) |
Managing Gauge Differences
When different gauges meet, engineers employ several strategies to maintain movement:
Break of Gauge and Bogie Exchange
At borders where gauges differ—such as between China (standard) and Russia (1,520 mm)—the "break of gauge" can cause delays. One method to solve this is to lift each carriage and change its bogies (the chassis/wheel assemblies), a process that can take several hours for a full train.

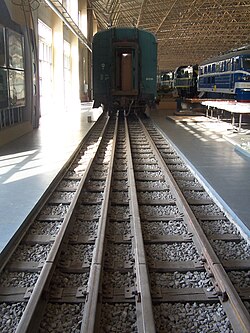

Dual and Mixed Gauge Tracks
To allow two different types of trains to use the same line, engineers use dual gauge or mixed gauge tracks. If the difference between gauges is small, a third rail can be added. If the difference is large, a fourth rail is required. This allows for complex operations, though it increases construction and maintenance costs.
Frequently Asked Questions
What is the difference between track gauge and loading gauge?
Track gauge refers to the distance between the two rails on the ground. The loading gauge refers to the maximum height and width of the train and its cargo that can safely pass through tunnels, under bridges, and past platforms.
Why aren't all railways the same gauge?
Different gauges exist due to historical decisions, local economic constraints, and specific engineering needs. Narrower gauges are often cheaper to build in difficult terrain, while wider gauges can offer more stability.
How do trains cross borders with different gauges?
Trains can either transfer their cargo to new wagons, change the wheel assemblies (bogies) under the carriages, or use dual-gauge tracks that accommodate both widths.
What is a "break of gauge"?
A break of gauge is a point where two different railway gauges meet, necessitating the transfer of passengers or goods from one train to another, which can cause significant delays.
Is standard gauge used everywhere?
No. While it is the most common (covering about 60.6% of the world's rail), many regions still use broad gauge, narrow gauge, or specific regional standards like the 1,520 mm gauge in Eastern Europe and Asia.
