Railway Curve Radius: Engineering Constraints and Design Principles
In railway engineering, the minimum curve radius represents the shortest allowable design radius for the centerline of tracks under specific operational conditions. This single parameter is a critical factor in determining construction costs, operating expenses, and the maximum safe speed at which a train can navigate a bend. When combined with superelevation—the difference in elevation between the two rails—the curve radius dictates the physical limits of the entire rail system.
From the earliest steam locomotives to modern high-speed maglev trains, the ability to negotiate curves has shaped the evolution of transport technology. Whether designing for heavy freight, rapid transit, or narrow-gauge mountain railways, engineers must balance the geometric constraints of the track with the mechanical capabilities of the rolling stock.
Key Facts
- The minimum curve radius is a primary factor in determining a train's maximum safe speed.
- Superelevation (or cant) is used to counteract centrifugal force in curves.
- Standard North American freight lines typically prefer a minimum radius of 574 feet (175 m).
- Modern diesel and electric locomotives use flexible bogies to better handle curvature than older fixed-wheelbase steam engines.
- High-speed rail requires significantly larger radii, sometimes exceeding 7,000 meters, to maintain safety and comfort.
Historical Context and Evolution
The history of rail design can be traced back to the Liverpool and Manchester Railway, which opened in 1830. Early railways utilized gentle curves and gradients primarily because the technology of the time was limited. The earliest rails were made of short lengths of wrought iron, which lacked the flexibility of the steel rails introduced in the 1850s. Sharp curves posed a significant risk of derailment due to the lack of track strength and limited visibility, which reduced situational awareness for operators.
The Challenge of Steam Locomotives
As the demand for more powerful steam locomotives grew, so did the need for longer wheelbases to accommodate more driving wheels. However, a long, fixed wheelbase struggles to navigate tight curves. To solve this, engineers developed articulated locomotives, such as the Mallet, Garratt, Meyer, and Fairlie designs. These allowed powerful engines to operate on much tighter radii. For instance, the Tasmanian Government Railways K class Garratt locomotives could navigate 99-foot (30 m) radius curves, whereas larger Beyer-Garratt locomotives required at least 275 feet (84 m).
Factors Influencing Curve Design
Several technical variables determine how sharp a railway curve can be. These include the speed of operation, the mechanical ability of the rolling stock to adjust to the bend, and the type of coupling used.
Rolling Stock and Gauge

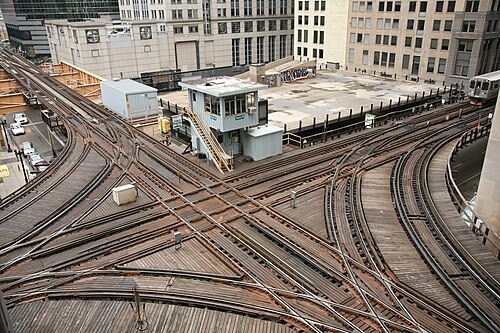

The width of the tracks, known as the gauge, plays a major role. Narrow-gauge railways often feature the sharpest curves because their equipment is proportionately smaller. While standard gauge can accommodate tight curves if the rolling stock is specifically built for them, doing so often sacrifices the benefits of standardization. In contrast, tramways can operate with radii below 100 feet (30 m).
Couplings and Train Length
The type of coupler used can limit the minimum radius. In Europe, traditional buffers and chain couplers extend the length of the car body, which can increase the minimum radius to approximately 150 m (492 ft) for speeds up0 to 60 km/h (37 mph). Because narrow-gauge and rapid transit systems often do not interchange with mainline railways, they frequently use bufferless central couplers to allow for tighter standards.
Long, heavy freight trains also face challenges on short radii. High drawgear forces can pull intermediate wagons off the rails. To mitigate this, operators may use several strategies:
- Marshalling light or empty wagons at the rear of the train.
- Utilizing intermediate or remotely controlled locomotives.
- Reducing train speeds or easing the curves.
- Implementing electronically controlled pneumatic brakes.
- Equalizing wagon loading, particularly in unit trains.
Speed, Cant, and Vertical Curves
When a heavy train enters a curve, centrifugal force creates lateral pressure. This can cause passenger discomfort, uneven rail wear, and track instability. To counter this, engineers use cant (superelevation), tilting the track inward. The goal is to ensure the resultant force acts vertically through the bottom of the train, minimizing sideways force.
The Mathematics of Tilt
The relationship between speed, radius, and tilt is mathematically linked. The required cant depends on the curve radius (r), the speed (v), and the acceleration due to gravity (g). Because freight and passenger trains operate at different speeds, a single cant setting cannot be ideal for both, often requiring a compromise in design.
Vertical Geometry
Curves are not only horizontal. Vertical curves—crests and troughs—also impact safety. A crest that is too sharp could cause a train to lose contact with the track, while a trough that is too tight could cause the train to press too heavily into the rails. High-speed lines, such as the UK's High Speed 1 and High Speed 2, require massive vertical radii (up to 56,000 m) to ensure that the change in perceived weight remains below 7% for passenger comfort.
Summary of Curve Radii Examples
| Radius | Location/System | Gauge | Notes |
|---|---|---|---|
| 8,000 m | Japan (Maglev) | N/A | Chūō Shinkansen (505 km/h) |
| 7,000 m | China HSR | 1,435 mm | 350 km/h |
| 1,200 m | Africa (Typical) | 1,435 mm | Medium-speed passenger |
| 175 m | Indian Railways | 1,676 mm | Freight main lines preferred |
| 125 m | North America | 1,435 mm | General service minimum |
| 61 m | London Underground | 1,435 mm | Central Line |
| 30 m | Metromover | N/A | Monorail system |
| 10.67 m | Taunton Tramway | 1,067 mm | Tramway |
Frequently Asked Questions
Why do high-speed trains require such large curve radii?
Large radii are necessary to manage centrifugal forces. At very high speeds, even a moderate curve would create excessive lateral force, causing passenger discomfort, extreme rail wear, and potential derailment risks unless the radius is significantly increased.
What is the difference between standard gauge and narrow gauge?
Gauge refers to the distance between the inner sides of the rails. Standard gauge is 1,435 mm (4 ft 8+1⁄2 in), while narrow gauge uses a smaller distance. Narrow-gauge systems are often used in mountainous or difficult terrain because they can accommodate much tighter curve radii.
How does superelevation help a train navigate a curve?
Superelevation, or cant, involves raising the outer rail higher than the inner rail. This tilts the train inward, using gravity to help counteract the centrifugal force that wants to push the train outward, resulting in a smoother and safer ride.
What are transition curves?
A transition curve is a segment of track that gradually changes the radius from a straight line to a circular curve. This prevents sudden changes in lateral acceleration, allowing for a smoother transition in both geometry and superelevation.
Why do some freight trains struggle with sharp curves?
Long freight trains experience intense drawgear forces on sharp curves, which can pull intermediate wagons off the tracks. Additionally, the length of the wagons and the type of couplers used can make it physically difficult for the train to follow a tight bend.
