Double-Track Railways: Engineering, Capacity, and Operational Dynamics

In the world of rail transport, the configuration of tracks determines how efficiently trains move from one destination to another. While a single-track railway requires trains traveling in opposite directions to share the same line—often necessitating stops at passing loops—a double-track railway typically provides one dedicated track for each direction. This fundamental distinction significantly impacts line capacity, safety, and operational speed.

: A double-track railway line running through a wooded area

Key Facts

• Double-track lines generally run one track in each direction to increase capacity.
• Track centres (the distance between track centers) affect maintenance, signaling, and high-speed performance.
• Singling is the process of reducing a double-track line to a single track to save on maintenance and taxes.
• Duplication involves adding a second track to a single-line route to accommodate growing traffic.
• Directional running allows two separate lines to operate as a single double-track system by assigning specific directions to each line.

Operational Handedness and Locomotive Design

The "handedness" of a railway refers to which side of the track trains travel on. This varies globally, and transitions between different systems can require specialized infrastructure. For example, historical flyovers were used at the pre-1918 French-German border to transition trains from left-hand running in France to right-hand running in Germany.

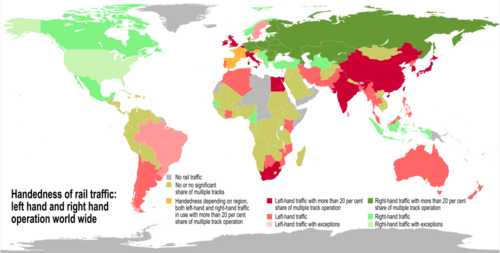

: Handedness of rail traffic worldwide

: Train running in Europe: Trains on right side Trains on left side

This handedness also influences locomotive design. While driver visibility is generally good from both sides of a cab, the placement of the driver can be optimized for the specific side of the track used. For instance, the French SNCF Class BB 7200 is designed for left-hand running using Left-Hand Drive (LHD). When modified for use in the Netherlands (as the NS Class 1600), the driver remained on the left despite the Netherlands using right-hand running.

The Engineering of Track Centres

The distance between the centers of two tracks, known as track centres, is a critical engineering decision. Narrower spacing reduces construction costs but complicates maintenance and signaling. For standard gauge tracks, centers may be 4 metres (13 ft) or less. However, high-speed lines require wider spacing to mitigate the impact of pressure waves created when trains pass each other at high velocities.

Wider track centres (6 metres or more) facilitate easier installation of overhead wiring and signaling structures. In some strategic locations, very wide spacing at major bridges can even provide military advantages by making it harder for a single accident to disable both lines.

: Brough station, East Riding of Yorkshire, England. Platform 1 is for trains north and eastbound (down), platform 2 is for trains south and westbound (up)[1]

Safety and the "Six Foot" Gap

In British railway terminology, the space between the two running rails of a single track is called the "four foot," while the gap between two different tracks is known as the "six foot." It is extremely dangerous to stand in this gap when trains are passing on both lines. Historical accidents, such as the Bere Ferrers accident of 1917, highlight the risks associated with these spaces.

Capacity Management: Duplication, Singling, and Passing Lanes

Railway authorities constantly balance the cost of infrastructure against the need for capacity. This leads to several common practices:

Duplication and Provision

To save money, some lines are built as single tracks but include provision for duplication—meaning the earthworks, tunnels, and bridges are already sized for two tracks. The Strathfield to Hamilton line in New South Wales is a classic example, where all structures were built for double tracks in the 1880s, allowing for full duplication by 1910.

Singling

Conversely, when traffic demand drops, a line may undergo singling to reduce maintenance and property tax costs. This has occurred on various lines in England and New Zealand. In some cases, such as the Kyneton to Bendigo line in Victoria, singling is actually used to provide more clearance for high-speed trains through older tunnels.

: Rail track after singling, seen at Charlbury, in Oxfordshire, England[c]

: A single-track railway at Kirkby, England, which was formerly doubled

Passing Lanes and Loops

Instead of full duplication, some lines use passing lanes or extended crossing loops to increase capacity. In Australia, the Main Southern line between Junee and Albury was partially duplicated by adding four 6 km (4 mi) long passing lanes to existing loops.

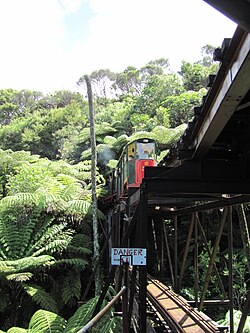

: Driving Creek Railway, New Zealand

Advanced Track Configurations

When standard double tracks are insufficient, engineers employ more complex layouts:

• Triple Track: Used to manage heavy traffic or uneven gradients. For example, the Union Pacific Railroad in Nebraska utilizes 108 miles of triple track to handle 150 trains per day.
• Quadruple Track: Common in high-density urban corridors, such as the Chūō Main Line or parts of the Amtrak Northeast Corridor, allowing express and local trains to run on separate tracks.
• Dual Gauge: Allows different track gauges to share the same corridor.
• Directional Running: Two separate single-track lines are operated as a single double-track system by assigning one line to one direction and the other line to the opposite direction. This is used extensively in the US and Canada to increase capacity without building new tracks.

: An express 6 train on the IRT Pelham Line, a three-tracked New York City Subway line

Even the alignment of tracks can vary. In difficult terrain, non-parallel double tracks may follow different paths to manage gradients, such as the uphill and downhill tracks at Frampton, New South Wales.

Summary of Track Configurations

Comparison of Railway Track Layouts

Configuration	Primary Use Case	Key Characteristic
Single Track	Low-traffic lines	Trains must share the same line; uses passing loops.
Double Track	Standard main lines	Dedicated tracks for each direction.
Triple Track	Heavy traffic/Gradients	Compromise between double and quadruple track.
Quadruple Track	High-density urban corridors (e.g., separating express and local services).
Directional Running	Shared infrastructure	Two single lines operated as one double-track system.

Frequently Asked Questions

What is the difference between a single-track and a double-track railway?

A single-track railway uses one set of rails for trains traveling in both directions, requiring careful scheduling and passing loops. A double-track railway uses two separate tracks, typically allowing one track for each direction of travel.

Why would a railway be "singled"?

Singling is usually done to reduce maintenance costs and property taxes when the volume of train traffic no longer justifies the expense of maintaining two tracks.

What are track centres?

Track centres refer to the distance between the centerlines of two adjacent tracks. This distance is influenced by the need for maintenance access, signaling requirements, and the pressure waves created by high-speed trains.

How does directional running work?

Directional running involves two separate single-track lines being operated as a single double-track corridor. One line is designated for traffic moving in one direction, while the other is designated for the opposite direction.

What is "provision for duplication"?

This is a construction strategy where a single-track line is built with bridges, tunnels, and earthworks already sized to accommodate a second track in the future, reducing the cost of later expansion.
