Understanding Railway Track: Engineering, History, and Structure
Whether you call it railroad track in North America or the permanent way in British English, the structure beneath a train is a marvel of precision engineering. The primary purpose of a railway track is to provide a dependable, low-friction surface that allows heavy steel wheels to roll efficiently. To achieve this, a complex system of rails, fasteners, sleepers (known as ties in the US), and ballast must work in perfect harmony atop a stable subgrade.
From the primitive wooden tramways of the 17th century to the high-speed slab tracks of the modern era, the evolution of the track reflects the increasing power and weight of the locomotives they support.
Key Facts
- Standard Gauge: The most common track width globally is 1,435 mm (4 ft 8½ in).
- Material Evolution: Rails transitioned from wood and cast iron to almost universal steel use since the 1870s.
- Rail Weight: Rail is graded by linear density; heavier rail supports higher speeds and greater axle loads.
- Track Types: Systems range from traditional ballast-based tracks to modern ballastless slab tracks.
- Gauge Variations: Gauges wider than standard are "broad gauge," while narrower ones are "narrow gauge."
The Historical Evolution of Rail
Early Wooden Tramways
The origins of rail can be traced back to the Wollaton Wagonway in Britain, built in 1603. These early systems utilized rails made of oak or beech, fastened to wooden sleepers with iron or wooden nails. To provide stability and a walkway for horses or people, gravel or small stones were packed around the sleepers. These early tracks often used short, 3-foot (0.91 m) rails that were not joined; instead, adjacent rails were laid on a single common sleeper.
The Impact of Steam Power
The introduction of steam locomotives in 1804 necessitated a massive leap in engineering. Early plateway tracks were too weak to support the weight of steam engines; for instance, Richard Trevithick’s locomotive at Pen-y-darren famously broke the track. By the 1810s and 1820s, engineers moved toward rigid formations using iron rails on stone sleepers. However, these were soon replaced by more flexible track structures that could accommodate the elastic movement caused by passing trains.
Core Components of Modern Track
The Rail
The rail is the contact surface for the train. Modern rails are graded by their linear density (mass over a standard length). In North America and the UK, this is measured in pounds per yard (lb/yd), whereas Europe uses kilograms per metre (kg/m). Heavier rails, such as 155 lb/yd (76.9 kg/m) models, allow for higher speeds and heavier loads but come at a higher cost.
Sleepers and Fasteners
Sleepers (or ties) support the rails and maintain the correct distance between them. They are secured to the rails using various fasteners. While older designs used bullhead rails sitting in cast-iron chairs, modern systems often use flat-bottomed rails clipped directly to sleepers or via steel baseplates.

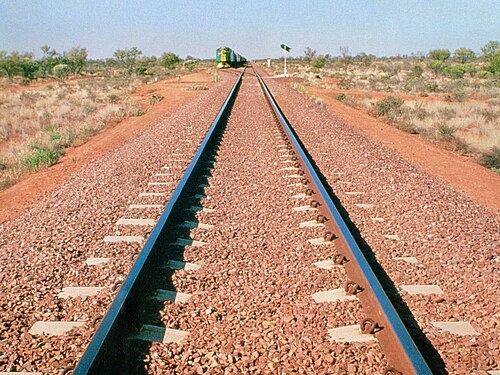

Ballast and Foundation
Traditional tracks use ballast—crushed stone that holds sleepers in place, provides drainage, and distributes weight to the subgrade. In some modern high-speed applications, slab track (ballastless track) is used, where rails are mounted on a concrete base to provide extreme stability.
Track Layout and Gauge
Gauge refers to the distance between the inner sides of the rail heads. During the 19th century, different systems used vastly different widths. In the UK, Isambard Kingdom Brunel’s "broad gauge" (7 ft 1¼ in) competed with the "narrow gauge" (1,435 mm). Ultimately, the 1,435 mm measurement became the standard gauge used by approximately 60% of the world's railways today.
To accommodate different systems, some tracks are dual gauge, utilizing three or four parallel rails to allow trains of different widths to use the same line.
Joining the Rails
Rails are joined using two primary methods:
- Jointed Track: Individual lengths of rail are bolted together using steel plates known as fishplates (UK) or joint bars (North America).
- Continuous Welded Rail (CWR): Rails are welded together to create long, seamless stretches, reducing the "clickety-clack" sound and improving ride quality.
Maintenance and Specialized Tracks
Maintaining the "permanent way" is a constant task. This includes managing expansion joints to handle temperature changes and repairing "pull-aparts" where rails have separated. In some cases, specialized equipment like flange oilers is used to lubricate wheels in tight curves to reduce wear.
Some tracks are even designed to be portable, used in mining or large-scale construction projects like the Panama Canal, where the track must move alongside the work site.
Summary of Track Components
| Component | Function | Common Materials |
|---|---|---|
| Rail | Provides the running surface | Steel |
| Sleepers/Ties | Supports rails and maintains gauge | Concrete, Wood, Steel |
| Ballast | Distributes load and aids drainage | Crushed stone |
| Fasteners | Secures rail to sleepers | Clips, bolts, or spikes |
| Slab Track | Modern ballastless alternative | Concrete |
Frequently Asked Questions
What is the difference between standard and narrow gauge?
Standard gauge is the international benchmark of 1,435 mm (4 ft 8½ in). Any track with a distance between the rails narrower than this is classified as "narrow gauge," while anything wider is "broad gauge."
Why is ballast used in railway tracks?
Ballast serves several critical roles: it holds the sleepers in place, distributes the heavy weight of the train to the ground below, and provides essential drainage to prevent water from pooling under the track.
What is continuous welded rail?
Continuous welded rail is a method of joining rails through welding rather than using bolts and fishplates. This creates a smoother, more continuous surface that reduces noise, vibration, and maintenance needs.
How is rail weight measured?
Rail is graded by its linear density. In the US and UK, this is typically expressed in pounds per yard (lb/yd), whereas in Europe, it is measured in kilograms per metre (kg/m). Heavier rails are more expensive but can support faster and heavier trains.
Can different types of trains use the same track?
Yes, through the use of dual gauge tracks. By adding extra rails (three or four instead of two), a single track can accommodate trains with different widths.
What is a guided busway?
A guided busway is a specialized track system designed for buses, allowing them to operate on a dedicated path similar to a light rail system.
