Railway Sleepers: The Essential Foundation of Modern Rail Infrastructure
In the complex engineering of a railway, the rails themselves often receive the most attention. However, the stability of the entire system relies on a critical component beneath the steel: the railway sleeper (known as a railroad tie in American English). These rectangular supports are laid perpendicular to the rails to perform several vital functions: they transfer heavy loads to the track ballast and subgrade, hold the rails upright, and maintain the precise spacing required to keep the track at the correct gauge.
While wooden ties have been the traditional choice for centuries, modern engineering has introduced a variety of materials to meet the demands of higher speeds, heavier axle loads, and different environmental conditions. From prestressed concrete to recycled plastic composites, the evolution of the sleeper reflects the changing needs of global rail networks.
Key Facts
- Primary Function: Maintains rail gauge, holds rails upright, and transfers loads to the ballast.
- North American Market: As of 2008, traditional wood ties held approximately 91.5% of the market share.
- Material Diversity: Common materials include wood, concrete, steel, and plastic composites.
- Concrete Advantages: Offers longer service life and better track geometry retention than timber.
- Steel Benefits: 100% recyclable and requires significantly less ballast than other types.
Common Types of Railway Sleepers

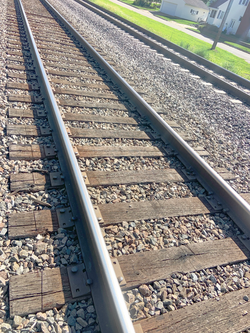

Wooden Ties
Wood remains the most widely used material, particularly in North America. Historically, interurban railways used wooden ties placed at approximately 2-foot intervals. While traditional, wood is subject to decay and requires regular maintenance. In some regions, such as Germany, the use of old wooden ties as building material is prohibited due to health and environmental risks associated with chemical treatments.
Beyond their functional use, wooden ties sometimes find a second life; for example, at Northfield railway station, recycled wooden ties have been transformed into sculptures.

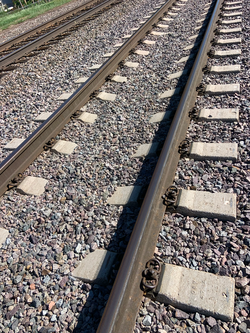

Concrete Ties
Prestressed concrete ties are widely used in Europe and Asia. They are generally cheaper and easier to obtain than timber and are superior at carrying higher axle weights and sustaining high speeds. Their significant weight helps maintain track geometry—the precise alignment of the rails—especially when used with continuous-welded rail.
A common misconception is that concrete ties increase wheel noise. In fact, a 2018 study showed they can be an average of 2dB(A) quieter than wooden sleepers, though they may produce a different acoustic sharpness on straight stretches of track.
Steel Ties
Steel ties are typically trough-shaped and are common on secondary or lower-speed lines in the United Kingdom. They feature a "spade" shape at the ends to increase lateral resistance. One of their greatest advantages is sustainability: they are 100% recyclable and require up to 60% less ballast than concrete ties and 45% less than wood.
Plastic and Composite Ties
Modern composite ties are manufactured from recycled plastic resins and rubber. These materials are impervious to rot and insect attacks, with an expected service life of 30 to 80 years. They are particularly useful in humid environments, underground mining, and on bridges, where their superior damping properties help reduce vibrations and sound production.
Specialized and Non-Conventional Forms
Engineering requirements often necessitate shapes beyond the standard rectangle:

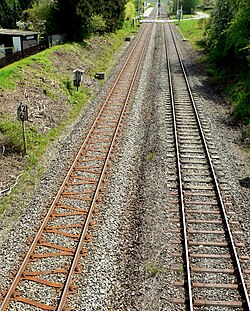

- Y-shaped Ties: These have an I-beam cross-section and are used in specific applications; as of 2006, the majority of Y-tie track was located in Germany.
- Twin/Bi-block Ties: These consist of two blocks joined together to provide specific stability benefits.
- Wide Ties: Concrete monoblock ties can be produced in wider forms (e.g., 57 cm) to increase lateral resistance and reduce pressure on the ballast.
Historical and Stone Sleepers
Before modern materials, stone blocks were utilized. Historical examples include the Kilmarnock and Troon Railway, where stone blocks served as the foundation for the tracks.
Comparison of Sleeper Characteristics
| Material Type | Primary Advantage | Key Disadvantage/Requirement |
|---|---|---|
| Wood | Traditional, widely available | Susceptible to rot and insects |
| Concrete | High weight, long service life | Requires well-prepared subgrade/ballast |
| Steel | 100% recyclable, low ballast use | Best suited for secondary/lower-speed lines |
| Composite | Rot-proof, excellent damping | Newer technology with varying market stability |
Frequently Asked Questions
Do concrete ties make trains louder?
No. Research, including a study for Euronoise 2018, indicates that concrete sleepers are actually an average of 2dB(A) quieter than wooden ones across most audible frequencies, though the sound profile may change on straight tracks.
Why are composite ties used on bridges?
Composite ties have better damping properties, which means they are more effective at reducing vibrations and sound production when installed on bridge girders or viaducts.
What is the difference between a railroad tie and a railway sleeper?
The difference is primarily linguistic: "railroad tie" or "crosstie" is standard American English, while "railway sleeper" is the standard term in British and Australian English.
How much ballast do steel ties require compared to wood?
Steel ties are highly efficient, requiring up to 45% less ballast than wooden ties and up to 60% less than concrete ties.
Can wooden ties be reused?
Yes, they can be recycled into various items, including sculptures, as seen in projects by artists like Agustín Ibarrola or at specific railway stations.
