M2-F3: Advancing the Frontiers of Lifting Body Technology
The history of space reentry is paved with experimental designs that sought to master the art of gliding back to Earth. Among the most significant of these was the Northrop M2-F3, a heavyweight lifting body technology demonstrator. Developed by NASA, this unique aircraft played a critical role in validating the concepts that would eventually lead to the success of the Space Shuttle program.
A lifting body is an aircraft design that generates lift through the shape of its fuselage rather than using traditional wings. By testing these configurations, NASA engineers could gather vital data on how piloted vehicles might safely return from orbit.
Development and Redesign
The M2-F3 was not a brand-new build from scratch, but rather a sophisticated evolution of the Northrop M2-F2. Following a crash at the Dryden Flight Research Center in May 1967, the M2-F2 sustained significant damage to its internal structure, external skin, and landing gear. While the vehicle initially appeared to be a total loss, Northrop undertook a massive three-year redesign and rebuilding effort.
The primary goal of the redesign was to address lateral control issues reported by pilots. The M2-F2 had been prone to pilot-induced oscillation (PIO)—a dangerous phenomenon where a pilot's corrective inputs actually amplify the aircraft's instability. To solve this, engineers from the Flight Research Center, Ames Research Center, and the Air Force added a third vertical fin centered between the existing tip fins. This modification significantly improved the vehicle's stability and control characteristics.
Operational History and Achievements
The M2-F3 took its first flight on June 2, 1970, piloted by Bill Dana. After a series of unpowered glide tests to ensure stability, the vehicle completed its first powered flight on November 25, 1970. Throughout its operational life, the M2-F3 served as a flying laboratory, testing advanced systems such as:
- Reaction Control Thruster (RCT) systems: Small thrusters used to control a spacecraft in the vacuum of space.
- Rate command augmentation control systems: Technology used to assist in stabilizing flight.
- Side-stick controllers: A control interface similar to those found in modern high-performance aircraft.
The M2-F3 completed 27 missions, reaching impressive milestones in speed and altitude. Its fastest flight occurred on December 13, 1972, reaching Mach 1.6 (1,064 mph). The vehicle's highest altitude was recorded during its final mission on December 20, 1972, when pilot John A. Manke soared to 71,500 feet.
Key Facts
- Manufacturer: Northrop
- Primary User: NASA
- First Flight: June 2, 1970
- Retired: December 20, 1972
- Top Speed: 1,064 mph (Mach 1.6)
- Highest Altitude: 71,500 feet
- Current Location: Smithsonian Institution (Steven F. Udvar-Hazy Center)

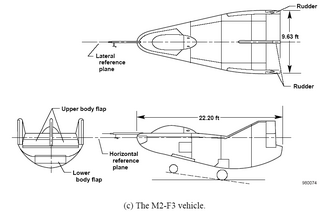

Technical Specifications
| Feature | Specification |
|---|---|
| Crew | 1 |
| Length | 22 ft 2 in (6.76 m) |
| Wingspan | 9 ft 8 in (2.95 m) |
| Empty Weight | 5,071 lb (2,300 kg) |
| Powerplant | 1 × Reaction Motors XLR-11 rocket motor |
| Max Speed | 1,064 mph (1,713 km/h) |
| Service Ceiling | 71,500 ft (21,800 m) |
Frequently Asked Questions
What does the name M2-F3 stand for?
In the designation, the "M" stands for "manned" and the "F" stands for "flight" version.
How did the M2-F3 differ from the M2-F2?
The M2-F3 featured an additional third vertical fin placed in the center to improve lateral stability and prevent pilot-induced oscillations.
Who were the primary pilots of the M2-F3?
The most frequent pilot was William H. Dana, who flew 19 missions. Other pilots included John A. Manke, Cecil W. Powell, and Jerauld R. Gentry.
Where can I see the M2-F3 today?
The aircraft was donated to the Smithsonian Institution and is currently on display at the Steven F. Udvar-Hazy Center.
What kind of engine did the M2-F3 use?
The vehicle was powered by a single Reaction Motors XLR-11 liquid-fueled rocket motor, which provided 8,000 lbf of thrust through four combustion chamber/nozzle assemblies.
