Amplitude Modulation: The Evolution and Mechanics of AM Radio

Amplitude Modulation: The Evolution and Mechanics of AM Radio In the world of electronic communication, amplitude modulation (AM) stands as one of the foundational techniques used to tran...

Amplitude Modulation: The Evolution and Mechanics of AM Radio

In the world of electronic communication, amplitude modulation (AM) stands as one of the foundational techniques used to transmit information via radio waves. At its core, AM is a process where the instantaneous amplitude of a carrier wave is varied in direct proportion to a message signal, such as an audio signal. This method provides the backbone for various communication systems, ranging from traditional radio broadcasting to modern computer modems.

While modern technology has introduced more complex methods like frequency modulation (FM)—which varies the frequency of the wave—and phase modulation, AM remains a vital part of the telecommunications landscape. It is still widely utilized in shortwave radio, amateur radio, two-way radios, VHF aircraft radio, citizens band radio, and even in the form of quadrature amplitude modulation (QAM) used in computer modems.

Animation of audio, AM and FM modulated carriers.
An audio signal (top) carried by a carrier signal using amplitude modulation (middle) and frequency modulation (bottom)
: An audio signal (top) carried by a carrier signal using amplitude modulation (middle) and frequency modulation (bottom)

Key Facts

  • Core Principle: AM varies the amplitude of a carrier wave to match the message signal.
  • Historical Milestone: Reginald Fessenden achieved the first intelligible AM voice transmission in 1900.
  • Efficiency Variants: Single-sideband (SSB) modulation improves bandwidth and power efficiency by eliminating unnecessary components.
  • Common Use: Due to its susceptibility to noise, AM is preferred for voice-heavy broadcasts like news and talk radio rather than high-fidelity music.
  • Technical Limitation: Increasing the signal-to-noise ratio in AM requires a proportional increase in transmitter power.

The History of AM Technology

The practical development of amplitude modulation occurred between 1900 and 1920. Early attempts at wireless communication relied on spark gap transmitters, which sent information via Morse code using pulses of radio waves. However, these pulses were "damped waves" that declined to zero, creating a harsh buzzing sound that made audio transmission impossible.

The breakthrough came when researchers realized that audio required continuous waves—smooth, sinusoidal signals. Reginald Fessenden was a pioneer in this shift. In 1900, he successfully transmitted the words, "Hello. One, two, three, four. Is it snowing where you are, Mr. Thiessen?" over a distance of one mile. Despite his success, he faced ridicule from experts who believed the impulsive spark was necessary for radio frequency waves.

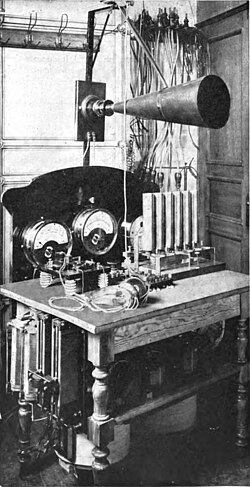

One of the crude pre-vacuum tube AM transmitters, a Telefunken arc transmitter from 1906. The carrier wave is generated by 6 electric arcs in the vertical tubes, connected to a tuned circuit. Modulation is done by the large carbon microphone (cone shape) in the antenna lead.
One of the crude pre-vacuum tube AM transmitters, a Telefunken arc transmitter from 1906. The carrier wave is generated by 6 electric arcs in the vertical tubes, connected to a tuned circuit. Modulation is done by the large carbon microphone (cone shape) in the antenna lead.
: One of the crude pre-vacuum tube AM transmitters, a Telefunken arc transmitter from 1906. The carrier wave is generated by 6 electric arcs in the vertical tubes, connected to a tuned circuit. Modulation is done by the large carbon microphone (cone shape) in the antenna lead.

The Vacuum Tube Revolution

Early AM transmission was limited by the lack of amplification technology. Massive devices like the Alexanderson alternator or the Poulsen arc transmitter were required to generate continuous waves. This changed in 1912 with the discovery of the amplifying capabilities of the Audion tube (a vacuum tube) invented by Lee de Forest. The vacuum tube allowed for much smaller, more efficient transmitters and paved the way for the rise of mass radio broadcasting around 1920.

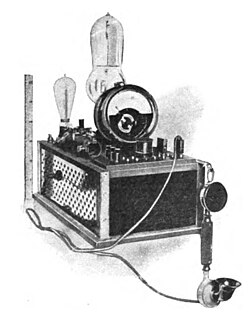

One of the first vacuum tube AM radio transmitters, built by Meissner in 1913 with an early triode tube by Robert von Lieben. He used it in a historic 36 km (22 mi) voice transmission from Berlin to Nauen, Germany. Compare its small size with the arc transmitter above.
One of the first vacuum tube AM radio transmitters, built by Meissner in 1913 with an early triode tube by Robert von Lieben. He used it in a historic 36 km (22 mi) voice transmission from Berlin to Nauen, Germany. Compare its small size with the arc transmitter above.
: One of the first vacuum tube AM radio transmitters, built by Meissner in 1913 with an early triode tube by Robert von Lieben. He used it in a historic 36 km (22 mi) voice transmission from Berlin to Nauen, Germany. Compare its small size with the arc transmitter above.

Technical Mechanics: How Modulation Works

To understand AM, one must look at the relationship between the carrier wave and the message signal. The carrier wave is a sine wave of a specific frequency ($f_c$) and amplitude ($A$). When modulation occurs, the amplitude of this carrier is modified by the message signal ($m(t)$).

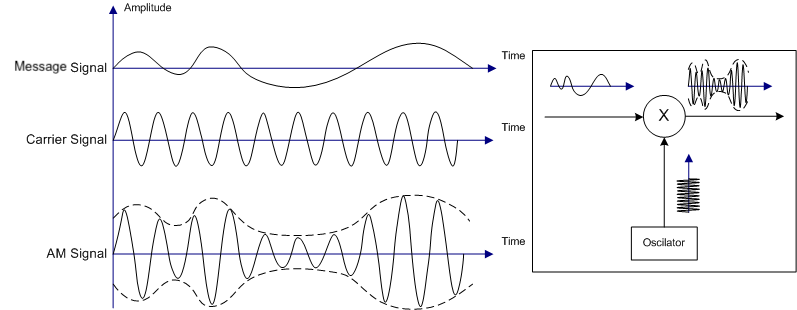

Illustration of amplitude modulation
Illustration of amplitude modulation
: Illustration of amplitude modulation

The Modulation Index and Overmodulation

A critical concept in AM is the modulation index. This index determines how much the carrier amplitude varies. If the carrier amplitude varies by 50% above and below its unmodulated level, the index is 0.5. If it reaches 100% modulation, the wave amplitude occasionally reaches zero.

It is vital not to exceed 100% modulation. This state, known as overmodulation, causes the signal to undergo "clipping," where the negative excursions of the wave envelope cannot drop below zero, resulting in significant distortion of the received message. To prevent this, transmitters often use limiter or compressor circuits.

Graphs illustrating how signal intelligibility increases with modulation index, but only up to 100% using standard AM.
Figure 4: Modulation depth. In the diagram, the unmodulated carrier has an amplitude of 1.
: Figure 4: Modulation depth. In the diagram, the unmodulated carrier has an amplitude of 1.

Spectrum and Efficiency

When a signal is modulated, it creates sidebands on either side of the carrier frequency. In standard double-sideband amplitude modulation (DSBAM), both sidebands are transmitted. However, the carrier itself carries no unique information but consumes a significant amount of power.

To improve efficiency, engineers developed single-sideband modulation (SSB). By using bandpass filters to eliminate one sideband and potentially the carrier, the ratio of message power to total transmission power is greatly improved, and bandwidth utilization is optimized. This technique was patented by John Renshaw Carson in 1915 and later adopted for transatlantic telephone services and military communications.

Diagrams of an AM signal, with formulas
Figure 2: Double-sided spectra of baseband and AM signals
: Figure 2: Double-sided spectra of baseband and AM signals
Sonogram of an AM signal, showing the carrier and both sidebands vertically
Figure 3: The spectrogram of an AM voice broadcast shows the two sidebands (green) on either side of the carrier (red) with time proceeding in the vertical direction.
: Figure 3: The spectrogram of an AM voice broadcast shows the two sidebands (green) on either side of the carrier (red) with time proceeding in the vertical direction.

Summary of ITU Type Designations

The International Telecommunication Union (ITU) provides specific designations for different types of amplitude modulation to ensure standardized communication:

ITU Amplitude Modulation Designations
Designation Description
A3E Double-sideband, full-carrier (basic AM)
R3E Single-sideband, reduced-carrier
H3E Single-sideband, full-carrier
J3E Single-sideband, suppressed-carrier
B8E Independent-sideband emission
C3F Vestigial-sideband

Demodulation: Recovering the Signal

To hear the original audio, the receiver must perform demodulation. The simplest method is using a diode configured as an envelope detector. This process recovers the "envelope" or the shape of the original message signal from the modulated carrier wave. This method is highly valued because it allows for the use of inexpensive, simple receivers.

Anode (plate) modulation. A tetrode's plate and screen grid voltage is modulated via an audio transformer. The resistor R1 sets the grid bias; both the input and output are tuned circuits with inductive coupling.
Anode (plate) modulation. A tetrode's plate and screen grid voltage is modulated via an audio transformer. The resistor R1 sets the grid bias; both the input and output are tuned circuits with inductive coupling.
: Anode (plate) modulation. A tetrode's plate and screen grid voltage is modulated via an audio transformer. The resistor R1 sets the grid bias; both the input and output are tuned circuits with inductive coupling.

Frequently Asked Questions

Why is AM not used for high-fidelity music broadcasting?

AM is highly susceptible to noise and electromagnetic interference. Because the receiver amplifies noise and the signal in equal proportion, it is not ideal for high-fidelity audio. Consequently, it is better suited for voice-centric content like news and sports.

What is the difference between AM and FM?

In Amplitude Modulation (AM), the strength (amplitude) of the carrier wave is varied to carry information. In Frequency Modulation (FM), the frequency of the carrier wave is varied instead. FM is generally more resistant to noise than AM.

What happens during overmodulation?

Overmodulation occurs when the modulation index exceeds 1 (or 100%). This causes the signal to "clip," meaning the wave envelope cannot accurately represent the message, leading to severe distortion in the received audio.

What is single-sideband (SSB) modulation?

SSB is an advanced form of AM that uses filters to remove one of the sidebands and often the carrier signal. This makes the transmission much more efficient in terms of both power consumption and the amount of radio bandwidth used.

How does an envelope detector work?

An envelope detector is a simple circuit, often using a diode, that extracts the amplitude variations (the envelope) from the high-frequency carrier wave, effectively reconstructing the original audio signal.
