Frequency Modulation: Principles, Applications, and Technical Evolution

Frequency modulation (FM) is a sophisticated signal modulation technique used across electronic communication to transmit information via radio waves. Unlike other methods, FM works by varying the instantaneous frequency of a carrier wave in proportion to the amplitude of a message signal, such as audio. This versatility makes it a cornerstone of modern telecommunications, radio broadcasting, signal processing, and computing.

In analog FM, the difference between the carrier's center frequency and its instantaneous frequency—known as frequency deviation—is functionally related to the amplitude of the modulating signal. This allows for the high-fidelity transmission of voice and music.

Animation of audio, AM and FM signals — A signal may be carried by an AM or FM radio wave.

Key Facts

Core Mechanism: Varies the carrier wave frequency based on the message signal's amplitude.
Noise Resistance: Offers superior signal-to-noise ratio (SNR) and RFI rejection compared to AM.
Digital Variant: Frequency-shift keying (FSK) is used for digital data, switching between discrete frequencies.
Bandwidth Types: Categorized into Narrowband FM (NFM) and Wideband FM (WFM).
Key Inventor: Edwin Howard Armstrong is credited with inventing wideband FM radio.

Technical Foundations of FM

Analog and Digital Modulation

Analog FM is primarily used for voice and music. In contrast, digital data is transmitted using frequency-shift keying (FSK). In binary FSK, the carrier switches between two discrete frequencies to represent the binary symbols 0 and 1. Due to its robustness and simplicity, FSK is widely employed in garage-door openers, remote keyless entry systems, telephone caller-ID, and early computer modems.

The Modulation Index

The modulation index is a critical value representing the ratio of the peak frequency deviation to the frequency of the modulating signal. This index determines whether a signal is classified as narrowband or wideband:

Narrowband FM (NFM): Occurs when the modulation index is low (typically < 1). An example is the Family Radio Service, where the carrier deviates only 2.5 kHz for speech signals.
Wideband FM (WFM): Occurs when the modulation index is high (> 1). This is used in commercial FM broadcasting, allowing deviations up to 75 kHz to support audio bandwidths up to 20 kHz.

Bessel Functions and Bandwidth

Mathematically, modulating a carrier frequency produces an infinite number of side frequencies. The amplitudes of these sidebands are expressed using Bessel functions. To determine the required bandwidth, engineers identify the number of significant sidebands (those with a relative amplitude of at least 0.01), double that count (since sidebands appear on both sides of the carrier), and multiply by the modulating frequency.

Frequency spectrum and waterfall plot of a 146.52 MHz carrier, frequency modulated by a 1,000 Hz sinusoid. The modulation index has been adjusted to around 2.4, so the carrier frequency has small amplitude. Several strong sidebands are apparent; in principle an infinite number are produced in FM but the higher-order sidebands are of negligible magnitude.

Carson's Rule

For a practical "rule of thumb," engineers use Carson's rule to estimate the bandwidth of a frequency-modulated signal. For sinusoidal signals, the bandwidth is calculated based on the peak deviation and the highest frequency of the modulating signal. For non-sinusoidal signals, the calculation incorporates the deviation ratio.

Noise Reduction and Signal Quality

One of the primary advantages of FM is its improved signal-to-noise ratio (SNR). While FM may perform poorer than AM below a specific noise threshold, it provides significant improvement—typically 5 to 15 dB for voice channels—once above the full quieting threshold.

To further enhance quality, FM systems employ pre-emphasis (boosting higher audio frequencies at the transmitter) and de-emphasis (reducing them at the receiver). Additionally, because FM signals maintain a constant amplitude, receivers use limiters to strip away AM noise, further cleaning the signal.

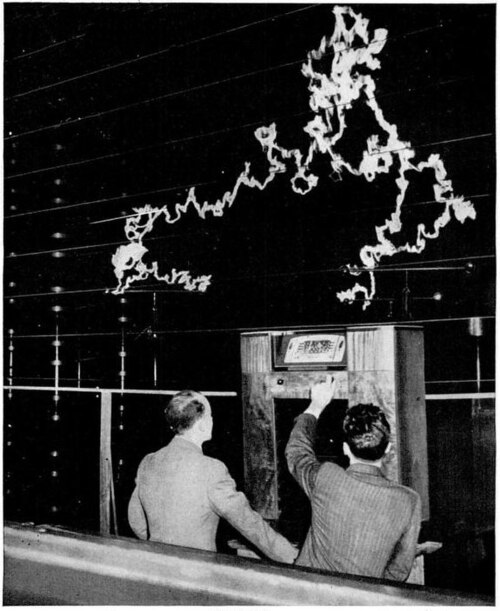

FM has better noise (RFI) rejection than AM, as shown in this dramatic New York publicity demonstration by General Electric in 1940. The radio has both AM and FM receivers. With a million-volt electric arc as a source of interference behind it, the AM receiver produced only a roar of static, while the FM receiver clearly reproduced a music program from Armstrong's experimental FM transmitter W2XMN in New Jersey.

Implementation and Applications

Modulation Methods

FM signals are generated through two primary methods:

Direct FM: The modulating audio voltage is fed directly into a voltage-controlled oscillator.
Indirect FM: The message signal is integrated to create a phase-modulated signal, which modulates a crystal-controlled oscillator and is then passed through a frequency multiplier to achieve wideband FM.

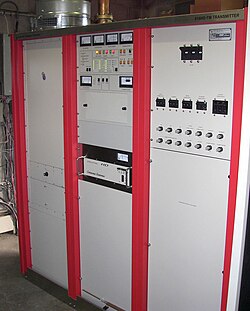

An American FM radio transmitter at WEDG in Buffalo, New York

Diverse Use Cases

Magnetic Tape Storage: Analog VCR systems (like VHS) use FM to record luminance (black and white) components. This prevents distortion across a wide frequency range and reduces noise via the FM capture effect.
Hearing Assistive Technology: FM auditory trainers improve speech intelligibility for people with sensorineural hearing loss, ADHD, or auditory processing disorders by intensifying signal levels by 15 to 20 dB.
Biological Systems: Certain bats utilize dynamic frequency modulation to compensate for Doppler shifts (frequency changes caused by movement) during echolocation.

Summary of FM Characteristics

Comparison of FM Types and Applications
Feature	Narrowband FM (NFM)	Wideband FM (WFM)	Digital FSK
Modulation Index	Low (< 1)	High (> 1)	Discrete values
Typical Deviation	e.g., ±2.5 kHz	Up to ±75 kHz	Fixed frequency shifts
Primary Use	Two-way radios	Radio broadcasting	Modems, Remote entry
Audio Quality	Basic voice	High-fidelity music/voice	Data bits (0 and 1)

Frequently Asked Questions

Who invented wideband FM radio?

Wideband FM was invented by American electrical engineer Edwin Howard Armstrong, who presented his findings in 1935 and launched the first experimental station, W2XMN, in 1937.

What is the difference between NFM and WFM?

Narrowband FM (NFM) has a small frequency deviation and a low modulation index, making it ideal for two-way radio. Wideband FM (WFM) has a much larger deviation and modulation index, allowing it to carry high-fidelity audio for broadcasting.

Why is FM better than AM regarding noise?

FM is more resistant to radio frequency interference (RFI) because it maintains a constant amplitude. This allows receivers to use limiters to remove amplitude-based noise without affecting the frequency-encoded information.

How is FM used in digital communications?

In digital systems, FM takes the form of Frequency-Shift Keying (FSK), where the carrier frequency switches between specific discrete values to represent binary data (0s and 1s).

How do FM systems help people with hearing loss?

FM auditory trainers improve the signal-to-noise ratio by transmitting the sound source directly to the user's ear, intensifying the signal by 15 to 20 decibels and making speech more understandable than with standard hearing aids alone.
