Medium Wave Radio: Technology, Propagation, and Global Broadcasting
Medium wave (MW) is a segment of the medium frequency (MF) radio band primarily utilized for AM (amplitude modulation) radio broadcasting. Emerging in the early 20th century, the term originates from a historical division of the radio spectrum based on wavelength, categorizing bands into long wave (LW), medium wave, and short wave (SW). While it served as the primary medium for global broadcasting from the 1920s through the 1950s, it has since been largely superseded by FM (frequency modulation) and digital formats due to sound quality limitations.
Key Facts
- Frequency Range: Generally spans from 530 kHz to 1700 kHz depending on the region.
- Propagation: Uses groundwaves for local coverage and skywaves for long-distance nighttime reception.
- Sound Quality: Limited audio bandwidth makes it ideal for talk and news rather than high-fidelity music.
- Antennas: Broadcasting typically relies on large mast radiators, while receivers often use compact ferrite rods.
- Digital Evolution: Modern updates include HD Radio in the US and DRM30 in parts of Asia.
Spectrum and Channel Allocation
The allocation of the medium wave spectrum varies by geography to manage interference and optimize coverage. In Europe, Asia, and Africa, the band typically consists of 120 channels spaced every 9 kHz. North and South America utilize a slightly different arrangement with 118 channels spaced every 10 kHz.
| Region | Frequency Range (kHz) | Channel Spacing | Number of Channels |
|---|---|---|---|
| Europe, Asia, Africa | 531 – 1602 | 9 kHz | 120 |
| Australia | 531 – 1701 | 9 kHz | 131 |
| North and South America | 530 – 1700 | 10 kHz | 118 |
Sound Quality and Audio Bandwidth
The audio quality of MW is constrained by its channel spacing. To prevent interference with adjacent channels, audio bandwidth is theoretically limited to 4.5 kHz (for 9 kHz spacing) or 5 kHz (for 10 kHz spacing). While sufficient for news and speech, this is inadequate for high-fidelity music. Many stations push their bandwidth up to 10 kHz for casual listening, though this can cause overlap with neighboring stations.
In the United Kingdom, Ofcom expanded the allowed bandwidth from 6.3 kHz to 9 kHz in 2024, resulting in a noticeable improvement in audio clarity. Unlike digital modes, the final sound quality of AM radio depends heavily on the frequency filters of the specific receiver used.
Propagation Characteristics
Medium wave signals travel via two primary methods: groundwaves and skywaves.
Groundwave Propagation
Groundwaves follow the curvature of the Earth and are not easily blocked by hills or buildings. Strong transmitters can typically reach 200 to 300 miles (320–480 km). This range is extended over salt water or terrain with high ground conductivity, and is more effective at lower frequencies within the MW band.
Skywave Propagation
Skywaves occur when radio waves reflect off the ionosphere—layers of charged particles in the upper atmosphere. During the day, the D layer of the ionosphere absorbs these signals. However, at night (and especially during winter or low solar activity), the D layer disappears, allowing signals to reflect off the higher F layer. This enables reception over thousands of kilometers, though it often leads to interference between distant stations sharing the same frequency.
To manage this, the North American Regional Broadcasting Agreement (NARBA) established clear channels. These are specific frequencies reserved for high-power stations (10 to 50 kW) to provide extended nighttime service.
Global Usage and Regional Trends
North America
Early US broadcasting was chaotic, with stations sharing only a few wavelengths. In 1923, Secretary Herbert Hoover introduced a structured bandplan. Today, the FCC requires many US stations to reduce power or shut down at night to prevent skywave interference; these are known as "daytimers." In Canada, the last daytimer ceased operations in 2013 after migrating to FM.
Europe
Many European nations, including Germany, France, and Russia, have limited or shut down MW transmitters since the 2010s to cut costs. However, large networks persist in the UK, Spain, and Romania. To combat overcrowding, some countries implemented single-frequency networks, where multiple transmitters are synchronized to minimize interference.
Asia and the Middle East
Medium wave remains highly active in Asia. Countries such as China, Japan, India, Indonesia, and Saudi Arabia continue to operate high-power transmitters. China, in particular, utilizes extensive single-frequency networks across its territory.
Stereo and Digital Transitions
To compete with FM, digital enhancements have been introduced. In the US, the FCC approved HD Radio (In-Band On-Channel or IBOC), which improves audio quality. Internationally, the ITU-approved Digital Radio Mondiale (DRM) system supports stereo and is used for test transmissions in China, South Korea, and India (via DRM30).
Antenna Technology
Broadcasting Antennas

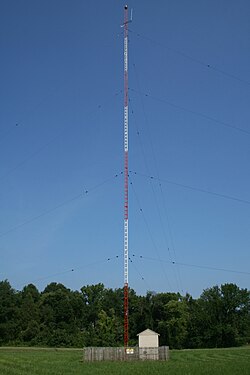

The most common broadcasting antenna is the mast radiator, where the steel lattice structure itself acts as the antenna. These are typically series-excited at the base and mounted on ceramic insulators.

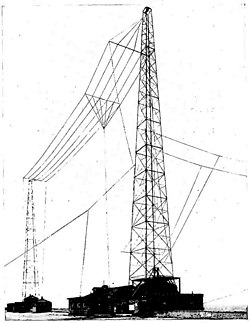

Depending on the power and frequency, masts vary in height from a quarter-wavelength to 5/9 wavelength. To save costs, some stations use capacitive top-loading (electrical lengthening) via "top hats" or umbrella antennas, which use radial wires to simulate a taller mast.
Receiving Antennas
Because atmospheric noise is prevalent at these frequencies, receivers can use small, inefficient antennas. The ferrite-rod antenna (or loopstick) is the most common, as its high-permeability core allows it to fit inside a radio case while remaining sensitive.
Frequently Asked Questions
Why is AM radio reception better at night?
At night, the ionospheric D layer disappears, allowing radio waves to reflect off the higher F layer (skywave propagation). This enables signals to travel much further than they do during the day.
What is the difference between a groundwave and a skywave?
A groundwave follows the Earth's surface and provides reliable local coverage. A skywave bounces off the ionosphere, allowing the signal to travel over the horizon to distant regions.
Why does AM radio have lower sound quality than FM?
AM radio has a much narrower audio bandwidth (typically 4.5 to 10 kHz) compared to FM, which limits its ability to reproduce high-fidelity music.
What are "daytimer" stations?
Daytimers are AM radio stations required by regulators to shut down or reduce power at night to avoid interfering with other stations via skywave propagation.
What is a ferrite-rod antenna?
It is a compact receiving antenna consisting of a coil of wire wrapped around a ferrite core, allowing it to be small enough to fit inside a portable radio while still capturing medium wave signals.
