Place of Articulation: How the Human Vocal Tract Shapes Speech
In the study of articulatory phonetics—the branch of linguistics concerned with how speech sounds are physically produced—one of the most critical concepts is the place of articulation. This refers to the approximate location within the vocal tract where a constriction is made to produce a consonant. This constriction occurs when an active articulator (a movable organ) comes into contact with, or approaches, a passive articulator (a relatively stationary part of the vocal tract).
While consonants are defined by these specific points of contact, vowels are produced with an open vocal tract. Because there is no significant constriction, vowels are not described by a place of articulation, but rather by their positions in vowel space, which is determined by formant frequencies rather than specific contact points.
The Mechanics of Sound Production
Human speech begins with air pressure from the lungs. As the diaphragm, abdominal, chest, and rib muscles coordinate, air flows through the trachea (windpipe), the larynx (voice box), and the pharynx (the back of the throat). This airflow is modified by several key components:
- The Larynx: A cartilaginous framework that anchors the vocal folds. When these folds vibrate due to air pressure, they create sound waves. This periodic oscillation is what creates voiced sounds.
- Resonance: As sound waves travel through the vocal tract, they are modified by the shape and position of the lips, jaw, tongue, and soft palate. These modifications create formant regions, which give sounds their unique qualities.
- The Nasal Cavity: For certain sounds, such as [m] and [n], air enters the nasal cavity, adding a distinct nasal quality to the consonant.
Active vs. Passive Articulators
To understand how different consonants are formed, we must distinguish between the parts of the mouth that move and those that remain still.
Active Articulators
Active articulators are the organs capable of voluntary movement that create the constriction in the airstream. The five primary moving parts of the vocal tract include the lips, the front of the tongue, the body of the tongue, the root of the tongue (including the epiglottis), and the glottis. These can be categorized into several degrees of movement:
- Labial: The lower lip.
- Coronal: Various parts of the front of the tongue, including the apical (tip), laminal (blade), and subapical (underside).
- Dorsal: The body of the tongue.
- Radical: The root of the tongue.
- Pharyngeal: The throat area.
- Glottal: The area at the back of the windpipe.

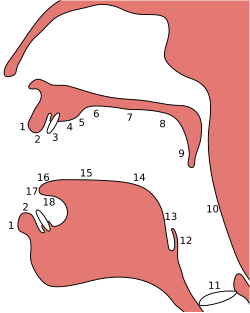

Passive Articulators
Passive articulators are the stationary targets that the active articulators contact. These include the upper lip, upper teeth, alveolar ridge (the gum line behind the teeth), hard palate, soft palate (velum), uvula, and the pharynx. Because these regions often overlap, linguists use specific terms like denti-alveolar to describe sounds that contact both the teeth and the alveolar ridge.
Summary of Articulation Combinations
| Active Articulator | Passive Articulator | Resulting Consonant Type |
|---|---|---|
| Lower Lip | Upper Lip | Bilabial |
| Lower Lip | Upper Teeth | Labiodental |
| Tongue Tip (Apical) | Alveolar Ridge | Apico-alveolar |
| Tongue Blade (Laminal) | Alveolar Ridge | Lamino-alveolar |
| Tongue Body (Dorsal) | Soft Palate (Velum) | Velar |
| Tongue Root (Radical) | Pharynx | Pharyngeal |
Advanced Articulatory Concepts
Homorganic Consonants
When consonants share the exact same place of articulation, they are referred to as homorganic. For example, in English, the sounds /n, t, d, s, z, l/ are all alveolar homorganic consonants. This often leads to assimilation, where a nasal consonant changes its place of articulation to match a following stop, such as the difference between the "n" in intolerable and the "m" in implausible.
Coarticulation and Secondary Articulation
Coarticulation occurs when two places of articulation happen simultaneously. This can result in doubly articulated consonants, such as the labial-velar stops [k͡p] found in many African languages. More commonly, coarticulation appears as secondary articulation, where one movement modifies another:
- Labialization: Rounding the lips during production (e.g., English [w]).
- Palatalization: Raising the tongue toward the hard palate.
- Velarization: Raising the back of the tongue toward the soft palate (e.g., the "dark l" in English).
- Pharyngealization: Constricting the throat.
Central and Lateral Articulation
Articulation also varies across the width of the tongue. If the airstream is directed down the center, the sound is central. If the air is deflected to the sides of the tongue, it is lateral, such as the English /l/.
Key Facts
- Place of articulation defines where a consonant constriction occurs.
- Active articulators are movable; passive articulators are stationary.
- Vowels are defined by vowel space and formants, not place of articulation.
- Homorganic sounds share the same place of articulation.
- Coarticulation involves two simultaneous articulatory gestures.
Frequently Asked Questions
What is the difference between active and passive articulators?
Active articulators are the moving parts of the vocal apparatus, like the tongue or lower lip, that create a constriction. Passive articulators are the stationary parts, like the teeth or the roof of the mouth, that the active articulators touch.
Why don't vowels have a place of articulation?
Vowels are produced with an open vocal tract. Because there is no specific point of constriction, they are instead described by their position in vowel space based on formant frequencies.
What does it mean if consonants are homorganic?
Homorganic consonants are sounds that are produced at the same place in the vocal tract. An example is the English set /p, b, m/, which are all labial.
What is coarticulation?
Coarticulation is when two different articulatory gestures occur at the same time. This can result in a single sound having two places of articulation, such as a labial-velar stop.
How does the larynx contribute to speech?
The larynx acts as a framework for the vocal folds. When these folds vibrate due to air pressure from the lungs, they create the periodic oscillations that result in voiced sounds.
