ChargePoint Charging Stations
ChargePoint specializes in the design, development, and manufacture of integrated hardware and software solutions for the electric vehicle (EV) ecosystem. By providing a diverse range of charging equipment, the company supports everything from individual residential needs to large-scale municipal and commercial infrastructure.
Key Facts
- Diverse Portfolio: Offers solutions ranging from small home chargers to 400 kW liquid-cooled modular systems.
- Fast Charging: DC fast chargers can charge some compatible EVs in under 30 minutes.
- Innovation: The CT4000 was the first station to support power sharing across multiple ports.
- Global Reach: Provides region-specific hardware, including Mennekes Type 2 chargers for the European market.
Residential Charging Solutions
For homeowners, ChargePoint provides compact charging units designed for ease of use and efficiency. The ChargePoint Home charger, recognized with an Edison Award for human-centered design and product innovation, is available in 16A and 32A versions. To provide higher power delivery, the ChargePoint Home Flex model adds support for 50A charging.
Commercial and Municipal Infrastructure
ChargePoint offers several families of chargers tailored for businesses, property owners, and city governments to support employees, residents, and customers.

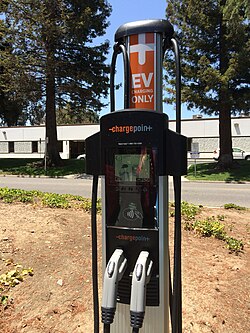

The CT4000 Family
The CT4000 is a versatile networked station designed for commercial and municipal use. It introduced the industry to power sharing, allowing multiple ports to distribute energy efficiently.
The CP4000 Family
Specifically designed for the European market, the CP4000 utilizes three-phase Mennekes (Type 2) charging with a capacity of up to 22 kW. These units are flexible in installation, capable of sharing a single three-phase 63A circuit or utilizing two separate 32A circuits.
The CPF25 Family
The CPF25 series targets multi-family residential complexes and fleet depots. In multi-family settings, these are typically used for personal charging in assigned spots. The family includes the CPF32 (a European Type 2 version limited to single-phase 32A) and the CPF50, which supports 50A charging.
High-Speed DC Fast Charging
For locations where time is critical—such as freeway corridors, quick-turnaround fleet hubs, or workplaces—ChargePoint provides DC fast chargers. Unlike AC chargers, these use an embedded AC-to-DC converter to charge the vehicle battery directly.
Express DC Fast Chargers
- Express 100: 24 kW capacity, available in separate CCS and CHAdeMO models.
- Express 200: 50 kW capacity, featuring both CCS and CHAdeMO ports. This design is licensed from Tritium.
- Express 250: 62.5 kW capacity.
Express Plus
Launched in January 2017 at CES in Las Vegas, the Express Plus is a high-performance, liquid-cooled modular system capable of delivering up to 400 kW.
Hardware Comparison Summary
| Model Family | Primary Use Case | Max Power/Current | Key Feature |
|---|---|---|---|
| ChargePoint Home/Flex | Residential | Up to 50A | Edison Award winner |
| CT4000 | Commercial/Municipal | Variable | Multi-port power sharing |
| CP4000 | European Commercial | 22 kW | Three-phase Type 2 |
| Express (100/200/250) | Fast Charging/Fleets | 24 kW to 62.5 kW | Direct DC battery charging |
| Express Plus | Ultra-Fast Charging | 400 kW | Liquid-cooled modular system |
Legacy and Obsolete Stations
Over time, ChargePoint has evolved its hardware. Earlier models include the CT1000 (the company's first station featuring a NEMA 5-15 outlet) and the CT1500, which offered 220V 16A outlets in various regional formats like Schuko or BS 1363. Other obsolete models include the CT2000 (single J1772), CT2100 (J1772 and NEMA 5-20), CT2500 (single-phase Mennekes), the CT2020 family (dual J1772 without power sharing), the CT500 (home charger), and the CT3000 (50 kW CHAdeMO).
Frequently Asked Questions
What is the difference between AC and DC charging in ChargePoint stations?
AC chargers, like the CT4000, provide alternating current that the car's onboard converter must change to DC. DC fast chargers, such as the Express series, have an embedded AC-to-DC converter that feeds power directly to the battery, significantly reducing charging time.
Which ChargePoint stations are designed for the European market?
The CP4000 family and the CPF32 are specifically designed for Europe, utilizing the Mennekes (Type 2) standard.
What is the maximum charging speed available from ChargePoint?
The Express Plus modular system is the most powerful, offering up to 400 kW of liquid-cooled charging.
Can the CT4000 share power between vehicles?
Yes, the CT4000 was the first ChargePoint station to support power sharing along multiple ports.
What are the available options for home charging?
ChargePoint offers the ChargePoint Home (available in 16A and 32A) and the ChargePoint Home Flex, which supports up to 50A.
