SVG Implementation and Browser Support

SVG (Scalable Vector Graphics) has transformed how visuals are delivered on the web, offering resolution-independent graphics that remain crisp at any scale. While now a standard, the journey toward universal adoption involved navigating varying levels of browser support and the evolution of mobile hardware.

Key Facts

Konqueror was the first browser to support SVG in February 2004.
Internet Explorer 9 marked the beginning of basic SVG support for Microsoft's legacy browser line.
SVG Tiny is a specialized profile designed for devices with limited resources, such as older smartphones.
Inline SVG allows graphics to be embedded directly in HTML via the <svg> tag, enabling shared CSS and event handling.
Vector graphics editors like Inkscape and Adobe Illustrator are primary tools for creating SVG files.

Web Browser Evolution

The adoption of SVG was historically hindered by a lack of support in older versions of Internet Explorer. To ensure accessibility, many developers implemented HTTP content negotiation or provided raster image alternatives for users on unsupported browsers.

Konqueror led the way in early 2004, and by 2011, most major desktop browsers had implemented some level of support. Early versions of Firefox (1.5 to 3.6) often required SVG files to be embedded within <object> or <iframe> elements rather than the standard <img> tag, though XHTML pages could utilize XML namespaces for integration.

Different layout engines have approached the SVG 1.1 Full specification with varying degrees of success:

Gecko (Firefox, SeaMonkey, Camino): Provided incomplete support since 2005, with Gecko 1.9 (Firefox 3.0) adding critical features like filters.
WebKit (Safari, Chrome, OmniWeb): Has maintained incomplete support for the SVG 1.1 Full specification since 2006.
Opera: Introduced SVG 1.1 Tiny in version 8.0, followed by Basic and partial Full support in version 9, and partial Tiny 1.2 support in version 9.5. Opera also supports SVGZ, the compressed version of SVG.
Internet Explorer/Edge: IE8 and older lacked support entirely. IE9 introduced basic features, and IE10 added SVG 1.1 filters. Microsoft Edge Legacy supports SVG 1.1.

Other supporting browsers include Pale Moon (via the Goanna engine), Amaya (partial support), and the Maxthon Cloud Browser.

SVG on Mobile Devices

Mobile implementation often relies on SVG Tiny (SVGT), a subset of the language optimized for smaller screens and lower processing power. Adobe Flash Lite has optionally supported SVG Tiny since version 1.1, and Sun demonstrated a mobile implementation for the Connected Limited Device Configuration (CLDC) platform in 2005.

Browser support on mobile has varied by OS:

iOS: The built-in iPhone browser includes SVG support.
Android: The built-in browser lacked support until version 3.0 (Honeycomb). Before this, Firefox Mobile 4.0b2 was the first Android browser to support SVG by default.
BlackBerry: Built-in support for SVG Tiny 1.1 began with version 5.0, continuing through WebKit-based browsers in OS 6 and 7.
Windows Phone: Support was introduced in version 7.5.

Hardware manufacturers have also integrated SVG deeply into their platforms. Nokia's S60 platform uses SVG for icons and led the JSR 226 expert group to define the Java ME API for SVG. Similarly, Sony Ericsson phones (starting with the K700) support SVG Tiny 1.1, with later models like the K750 adding opacity and gradients. Other supporting brands include Motorola, Samsung, LG, and Siemens/BenQ-Siemens, some of which utilize the eSVG rendering library for embedded devices.

Authoring and Rendering

SVG images can be created through hand-coding or by using professional vector graphics editors. Popular tools include Inkscape, Adobe Illustrator, Adobe Animate, and CorelDRAW. Some of these tools, such as Boxy SVG and Inkscape, can trace raster images into Bézier curves (mathematically defined curves) using back-ends like potrace, autotrace, or imagetracerjs.

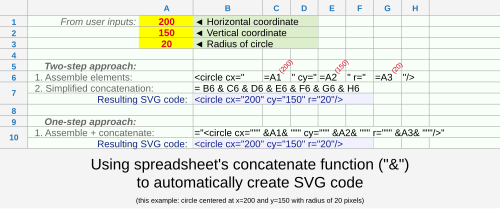

In addition to manually entering code and using vector graphics editors, users can use spreadsheet programs' concatenate function to join numeric cell values and text strings in series, to generate full SVG declarations.

For automated rendering, developers use libraries such as librsvg (used by GNOME since 2000), Batik, or ThorVG (introduced in 2020 for lightweight systems). The command-line utility ImageMagick also allows for the conversion of SVG files into various raster formats.

Beyond the web, SVG is utilized in word processing (LibreOffice), desktop publishing (Scribus), and data plotting (gnuplot). Microsoft 365 and Office 2019 provide full support for importing, exporting, and editing SVG files. Apple identifies SVG files using the Uniform Type Identifier public.svg-image.

Category	Key Examples / Versions	Notes
Early Adopters	Konqueror 3.2	First browser support (Feb 2004)
Mobile Standards	SVG Tiny (SVGT)	Optimized for limited hardware
Authoring Tools	Inkscape, Adobe Illustrator	Vector-based creation and tracing
Rendering Libraries	librsvg, Batik, ThorVG	Used for software-based rendering
Integration Method	Inline SVG	Embedded via `<svg>` tag in HTML

Frequently Asked Questions

What is the difference between SVG and raster images?

Unlike raster images (like PNG or JPEG) which are made of pixels, SVG is a vector format based on mathematical paths. This allows SVG images to be scaled to any size without losing quality or becoming pixelated.

Which browser was the first to support SVG?

Konqueror was the first browser to provide SVG support, debuting this feature in release version 3.2 in February 2004.

What is SVG Tiny?

SVG Tiny is a simplified version of the SVG specification designed specifically for mobile devices and embedded systems with limited memory and processing power.

How does Inline SVG benefit web developers?

Inline SVG allows the graphic to be part of the HTML document's DOM. This means the SVG and HTML share the same context, allowing developers to use CSS for styling and JavaScript for event handling directly on the vector elements.

Can SVG images be converted to other formats?

Yes, vector graphics editors like Inkscape can render SVGs to raster formats like PNG. Additionally, the command-line tool ImageMagick can be used to convert SVG files into various popular image formats.
