Pie Charts: History, Variants, and Data Visualization Effectiveness
A pie chart, also known as a circle chart, is a circular statistical graphic used to illustrate numerical proportions. By dividing a circle into slices, the chart represents data through the arc length, central angle, and area of each segment, all of which are proportional to the quantity being measured. While the name stems from its resemblance to a sliced pie, the format has evolved into numerous sophisticated variations used across business and mass media.
Key Facts
- Origin: Credited to William Playfair in his 1801 publication, Statistical Breviary.
- Core Function: Illustrates how individual parts contribute to a whole.
- Common Criticism: Experts often suggest alternatives like bar charts because humans struggle to compare angles and areas accurately.
- Best Use Case: Comparing a single category to the total when the value is near 25% or 50%.
- Most Accurate Variant: Research suggests square pie charts (waffle charts) provide the most accurate readings.
The Evolution of Circular Graphics
The history of the pie chart is marked by significant contributions from pioneering statisticians. William Playfair introduced the first known versions in 1801 to depict the proportions of the Turkish Empire. Although his initial designs were not widely adopted, they laid the groundwork for modern data visualization.

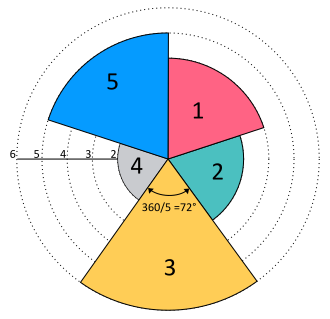

Florence Nightingale played a crucial role in making circular graphics more practical and readable. She developed the polar area diagram (sometimes called a Nightingale rose diagram), which functions similarly to a modern circular histogram. By making the length of the wedges variable rather than just their width, she created a powerful tool for illustrating seasonal mortality rates in military hospitals. Her work is often cited as a primary example of using data visualization to persuade decision-makers to implement social change.
Other notable historical users include the French engineer Charles Joseph Minard, who utilized pie charts in 1858 to map the distribution of cattle sent to Paris for consumption.
Common Variants and Specialized Formats
Over time, several variations have emerged to address specific data needs or aesthetic preferences:
3D and Exploded Pie Charts

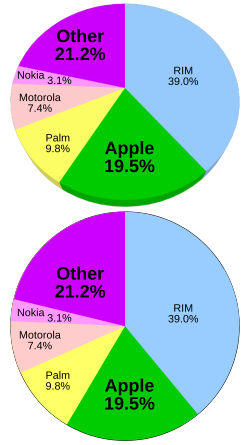

A 3D pie chart adds a third dimension for aesthetic appeal. However, experts discourage this practice because the perspective distortion makes the data difficult to interpret accurately.
An exploded pie chart features one or more sectors separated from the main disk. This technique is used to highlight a specific segment or to make smaller proportions more visible to the viewer.
Doughnut and Multi-level Charts
A doughnut chart is a variation with a blank center. This empty space can be used to display additional information about the total dataset, often providing a better data intensity ratio than a standard pie chart.
For hierarchical data, researchers use ring charts (also known as sunburst or multilevel pie charts). These consist of concentric circles where the center represents the root node, and outer segments represent sub-categories within that hierarchy.
Specialized Statistical Diagrams
The spie chart, designed by Dror Feitelson, superimposes a standard pie chart with a modified polar area chart. This allows for the comparison of two related datasets—for example, showing population demographics alongside accident casualty rates.
The square pie chart, or waffle chart, replaces circular slices with a grid of squares (often a 10x10 grid). Because each cell represents a fixed percentage (e.g., 1%), these charts are much more effective at displaying small percentages that might be lost in a traditional circular format.
Effectiveness and Comparison with Other Methods
Despite their popularity, many statisticians view pie charts as a sub-optimal method for displaying complex information. Research from AT&T Bell Laboratories indicates that human perception is more accurate when comparing lengths (as in bar charts) rather than angles or areas. When a chart contains too many slices, it becomes difficult to read without heavy reliance on color-coded legends.
While pie charts struggle with large datasets, they remain useful for simple comparisons. For instance, if you need to show how a single part relates to the whole, a pie chart can be more intuitive than a bar graph, provided the data is not overly complex.

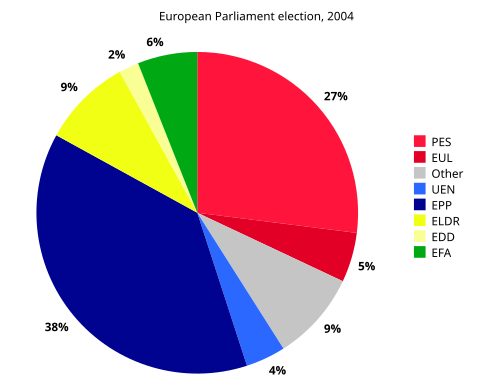

For a detailed look at how these proportions are calculated, consider the following example based on 2004 European Parliament election data:
| Group | Seats | Percent (%) | Central Angle (°) |
|---|---|---|---|
| EUL | 39 | 5.3 | 19.2 |
| PES | 200 | 27.3 | 98.4 |
| EFA | 42 | 5.7 | 20.7 |
| EDD | 15 | 2.0 | 7.4 |
| ELDR | 67 | 9.2 | 33.0 |
| EPP | 276 | 37.7 | 135.7 |
| UEN | 27 | 3.7 | 13.3 |
| Other | 66 | 9.0 | 32.5 |
Frequently Asked Questions
Who invented the pie chart?
The earliest known pie chart is credited to William Playfair, who included them in his 1801 work, Statistical Breviary.
Why are 3D pie charts often discouraged?
3D pie charts use perspective that can distort the visual size of the slices, making it difficult for the viewer to interpret the actual data accurately.
What is the difference between a pie chart and a doughnut chart?
A doughnut chart is a variation of a pie chart that has a hollow center. This center can be used to display additional summary information or labels.
When should I use a bar chart instead of a pie chart?
You should use a bar chart when you need to compare many different values or when you want to compare multiple datasets side-by-side, as humans are better at comparing lengths than angles.
What is a waffle chart?
A waffle chart (or square pie chart) uses a grid of squares to represent percentages. This format is often more accurate for displaying very small percentages than a circular chart.
