To keep modern electric locomotives, trams, and trolleybuses moving, a constant stream of electrical energy must be delivered directly to the vehicle. This is achieved through overhead lines—an intricate system of electrical cables suspended above tracks designed to transmit power to moving vehicles. Whether referred to as overhead catenary, overhead contact systems (OCS), or traction wires, these systems are the lifeblood of electrified transit networks worldwide.

At its core, an overhead line consists of one or more wires or rails situated above the path of travel. These lines are raised to a high electrical potential by connection to feeder stations, which are themselves supplied by high-voltage electrical grids at regular intervals.

Overhead lines
Overhead lines

Key Facts

Overhead over a switch in Toronto: Two runners for pantographs flank the trolley pole frog.
Overhead over a switch in Toronto: Two runners for pantographs flank the trolley pole frog.
  • Terminology: Commonly known as catenary, OCS, OHE, or OLE.
  • Components: Typically includes a contact wire and a messenger (catenary) wire.
  • Tensioning: Uses auto-tensioning (weights or hydraulics) to maintain stability across temperature changes.
  • Applications: Powers everything from high-speed rail to urban streetcars and trolleybuses.
  • Materials: Primarily copper or copper alloys for high conductivity and tensile strength.

System Construction and Wire Types

A switch in parallel overhead lines
A switch in parallel overhead lines

The design of an overhead system varies depending on the vehicle type and speed requirements. For example, trolley poles used on certain vehicles do not require the zigzagging patterns often seen in other systems. In tramway applications, a contact wire is frequently used without a supporting messenger wire.

Modern high-speed systems have evolved significantly. Some designs utilize a single wire embedded in an extruded aluminum beam at support points, allowing for stable performance even at speeds of 400 km/h (250 mph) when paired with advanced pneumatic servo pantographs.

Catenary (upper photo) is suited to higher-speed rail vehicles. Trolley wire (lower photo) is suited to slower-speed trams (streetcars) and light rail vehicles.
Catenary (upper photo) is suited to higher-speed rail vehicles. Trolley wire (lower photo) is suited to slower-speed trams (streetcars) and light rail vehicles.

Material Composition and Regional Standards

The choice of metal is a delicate balance between conductivity (the ability to carry current) and tensile strength (the ability to resist breaking under tension).

  • Soviet Union Standards: Historically used cold-drawn solid copper for contact wires, sometimes adding 0.04% tin for strength. Messenger wires were often multi-strand cables using a mix of copper, aluminum, and steel.
  • Slovenia: Utilizes 3 kV systems with contact wire sizes of 100 and 150 mm. Larger configurations may use up to 37 strands in the catenary wire.
  • UK and EU: Contact wires are typically copper alloys (such as copper-silver, copper-cadmium, or copper-magnesium). These alloys are identifiable by specific grooves along the upper lobe of the wire.
Two overhead conductor rails for the same track. Left, 1,200 V DC for the Uetliberg railway (the pantograph is mounted asymmetrically to collect current from this rail); right, 15 kV AC for the Sihltal railway
Two overhead conductor rails for the same track. Left, 1,200 V DC for the Uetliberg railway (the pantograph is mounted asymmetrically to collect current from this rail); right, 15 kV AC for the Sihltal railway

The Role of the Messenger Wire

In a catenary system, the messenger wire (or catenary wire) provides the structural support. It must be exceptionally strong. In many designs, this is achieved through multi-strand cables where steel strands provide strength while copper or aluminum strands ensure conductivity. Some wires even feature a steel core encased in copper for maximum efficiency.

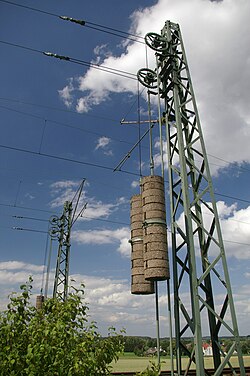

Line tensioning in Germany
Line tensioning in Germany

Tensioning and Stability

A section insulator at a section break in Amtrak's 12 kV catenary
A section insulator at a section break in Amtrak's 12 kV catenary

Because metal expands in heat and contracts in cold, maintaining consistent contact between the wire and the vehicle's pantograph is a major engineering challenge. This is managed through two primary methods:

  1. Auto-Tensioning (AT): Used for medium and high speeds, this method uses weights or hydraulic tensioners to ensure tension remains constant regardless of temperature. Weights typically slide along a rod attached to a mast to prevent swaying.
  2. Fixed Termination (FT): Used in low-speed areas or tunnels where temperatures are stable. While simpler, these lines will sag in hot weather and become taut in the cold.

In the UK, for most 25 kV equipment, the maximum length of a continuous tensioned section is approximately 1,970 meters.

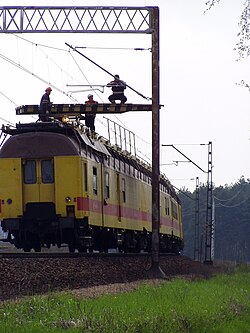

Lineworkers on a maintenance of way vehicle repairing overhead lines (Poland)
Lineworkers on a maintenance of way vehicle repairing overhead lines (Poland)

Complex Intersections and Crossings

Neutral Section Indication Board used on railways in the UK. Six of these would be required at crossings
Neutral Section Indication Board used on railways in the UK. Six of these would be required at crossings

Where different transit modes meet, the engineering becomes significantly more complex. For instance, when a tramway crosses a trolleybus line, the systems must remain electrically isolated to prevent interference.

In these junctions, trolleybus wires are often protected by an insulating trough positioned slightly below the wires. To ensure the tram's pantograph maintains continuous power while crossing, the tram wire may transition into a solid bar that bridges the gap between conductors.

Tram overhead wire (diagonal) crossing trolleybus wires (horizontal), photographed in Bahnhofplatz, Bern, Switzerland
Tram overhead wire (diagonal) crossing trolleybus wires (horizontal), photographed in Bahnhofplatz, Bern, Switzerland
Annotated version of the previous photo, highlighting components tram conductor trolley bus wires insulated trough
Annotated version of the previous photo, highlighting components tram conductor trolley bus wires insulated trough
Trolleybus wire switch
Trolleybus wire switch

Multiple Overhead Lines

While most systems use a single wire, some specialized railways use two or three overhead lines to carry three-phase current. This is seen on specific lines like the Gornergrat Railway in Switzerland. In these setups, the overhead wires carry different phases, while the rail itself may serve as the third phase.

Compound catenary equipment of JR West
Compound catenary equipment of JR West

Support Structures and Infrastructure

25 kV AC neutral zone in Romania
25 kV AC neutral zone in Romania

Overhead lines require robust support to remain in position. Common structures include:

  • Cantilevers: Single, double, or back-to-back structures that hold wires away from masts.
  • Portals: Large frames spanning multiple tracks.
  • Headspans: Masts at either side of the track connected by horizontal span wires. While cheaper and less visually intrusive, they are less reliable for high-speed applications because a failure in one wire can affect the entire system.
Gantry structures to support overhead lines in Hyderabad, India
Gantry structures to support overhead lines in Hyderabad, India
Gantry with old and new suspended equipment at Grivita railway station, Bucharest
Gantry with old and new suspended equipment at Grivita railway station, Bucharest

Regional Implementations in the US

In the United States, Amtrak's Northeast Corridor utilizes catenary across 600 miles between Boston and Washington, D.C. Other notable examples include the Cleveland area, where light rail and heavy rail share overhead wires, and the Caltrain system in California, which recently completed a major transition to an overhead contact system to prepare for full electrification.

Overhead feeding rail on the RER Line C trenches and tunnels in central Paris
Overhead feeding rail on the RER Line C trenches and tunnels in central Paris

Summary of Overhead Line Components and Systems

A swing bridge near Meppel, the Netherlands. There is no overhead line on the bridge; the train coasts through with raised pantograph.
A swing bridge near Meppel, the Netherlands. There is no overhead line on the bridge; the train coasts through with raised pantograph.
Comparison of Common Overhead Systems
Feature Catenary System Trolley Wire System
Primary Use High-speed rail and heavy locomotives Trams, streetcars, and light rail
Structure Messenger wire supporting a contact wire Single contact wire (often without messenger)
Speed Suitability High-speed capability Lower-speed urban transit
Power Collection Pantograph Pantograph or Trolley Pole
B&O's overhead third-rail system at Guilford Avenue in Baltimore, 1901, part of the Baltimore Belt Line. The central position of the overhead conductors was dictated by the many tunnels on the line: the ∩-shaped rails were located at the highest point in the roof to give the most clearance.[9]
B&O's overhead third-rail system at Guilford Avenue in Baltimore, 1901, part of the Baltimore Belt Line. The central position of the overhead conductors was dictated by the many tunnels on the line: the ∩-shaped rails were located at the highest point in the roof to give the most clearance.[9]

Frequently Asked Questions

An older rail bridge in Berwick-upon-Tweed, retrofitted to include overhead catenary lines
An older rail bridge in Berwick-upon-Tweed, retrofitted to include overhead catenary lines

What is the difference between a catenary and a trolley wire?

A catenary is a complex system using a messenger wire to support a contact wire, making it suitable for high-speed trains. A trolley wire is a simpler, single-wire system typically used for slower-moving trams and streetcars.

How do overhead lines handle temperature changes?

Engineers use auto-tensioning devices, such as weights or hydraulic tensioners, to keep the wire at a constant tension. This prevents the wire from sagging too much in the heat or becoming too tight in the cold.

Why are different metals used in overhead wires?

Different metals are chosen to balance conductivity and strength. Copper provides excellent electrical conductivity, while adding alloys like silver, cadmium, or magnesium increases the tensile strength needed to withstand physical stress.

Can overhead lines be damaged by weather?

Yes, overhead lines can be damaged by strong winds. Additionally, lightning strikes can hit the wires or support structures, causing power surges that can stop train operations.

What happens when a train passes under a bridge without wires?

In some cases, such as certain swing bridges, a train may coast through the section with its pantograph raised, relying on the momentum and stored energy to pass through the gap where no overhead lines are present.
