High-Definition Television: The Evolution of Image Resolution and Standards
High-definition television (HDTV), commonly referred to as HD, represents a significant leap in video technology, providing substantially higher image resolution than previous generations. While the term has been used since at least 1933, in the modern era, it distinguishes high-resolution video from the older standard-definition television (SDTV) formats. Today, HDTV serves as the primary video standard for terrestrial, cable, and satellite broadcasts.
Key Facts
- HDTV provides much higher resolution than legacy analog standards like NTSC, PAL, and SECAM.
- Common formats include 720p, 1080i, and 1080p.
- Major global standards include DVB (Europe/Asia/Africa), ATSC (North America), and ISDB (Japan/South America).
- The transition from analog to digital HDTV was a global competition spanning the late 20th and early 21st centuries.
Understanding HDTV Formats and Scanning
HDTV is transmitted using different resolutions and scanning methods. The two primary methods of displaying images are progressive scan, where every line of the image is drawn in sequence, and interlaced scan, where the image is divided into fields of alternating lines.
Common Resolution Formats
- 720p (1280 × 720): A progressive scan format containing 921,600 pixels.
- 1080i (1920 × 1080): An interlaced scan format containing approximately 1.04 million pixels per frame.
- 1080p (1920 × 1080): A progressive scan format containing approximately 2.07 million pixels per frame.
Some regions also utilize non-standard resolutions, such as 1440 × 1080i, which provides approximately 0.78 million pixels per field or 1.56 million pixels per frame.
| Format | Resolution | Scan Type | Total Pixels |
|---|---|---|---|
| 720p | 1280 × 720 | Progressive | 921,600 |
| 1080i | 1920 × 1080 | Interlaced | ~1,036,800 |
| 1080p | 1920 × 1080 | Progressive | ~2,073,600 |

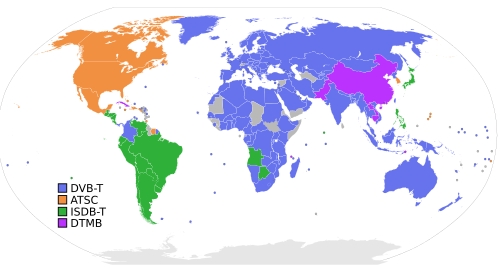

Global Digital Television Standards
Because different regions developed technology at different rates, several distinct digital broadcasting standards emerged. These standards dictate how signals are transmitted to terrestrial, cable, satellite, and mobile devices.
- DVB: Originating in Europe, this is widely used across much of Asia, Africa, and Australia.
- ATSC: The primary standard used throughout much of North America.
- DTMB: Utilized in China and several neighboring countries.
- ISDB: Used in two incompatible variations in Japan and South America.
- DMB: A standard specifically used by mobile devices in South Korea.
A Brief History of High Definition
The quest for high definition began long before the digital age. In 1933, early high-definition systems were announced, though they were only "high definition" when compared to the mechanical systems of the time that featured as few as 30 lines of resolution. Throughout the 20th century, the definition of "high definition" shifted as technology improved.
During the 1980s, the world relied on analog standards such as 525-line NTSC and 625-line PAL or SECAM. As digital signals began to emerge in the late 1990s, the term HDTV was redefined to describe systems with at least 4 to 5 times the resolution of these analog standards. This evolution continued through the introduction of 4K, 5K, and 8K systems in the 2010s.
The Transition in the United States and Europe
In the United States, the Digital HDTV Grand Alliance—a group including MIT, Philips, and AT&T Bell Labs—officially established HDTV technology in 1993. The first public HDTV broadcast in the U.S. occurred in July 1996 in Raleigh, North Carolina.
Europe's journey involved a shift from the analog HD-MAC system to the digital Digital Video Broadcasting (DVB) project. While Italy's RAI began 1080i broadcasting via DVB-T in 2008, the UK's Freeview HD service was rolled out in stages, completing its digital switchover by October 2012.
Frequently Asked Questions
What is the difference between 1080i and 1080p?
The primary difference is the scanning method. 1080i uses interlaced scanning, which alternates between odd and even lines to create a frame, while 1080p uses progressive scanning, which draws every line in every frame, typically resulting in a smoother image.
What does the notation 1080p25 mean?
This notation describes the resolution and the frame rate. In 1080p25, the "1080p" indicates a 1920 × 1080 progressive scan resolution, and the "25" indicates that the system is delivering 25 frames per second.
Are all HDTV standards the same worldwide?
No. Different regions use different standards, such as ATSC in North America and DVB in Europe and much of Asia, to manage how digital signals are broadcast and received.
What was the role of the Grand Alliance in HDTV history?
The Digital HDTV Grand Alliance was a group of companies and institutions in the United States that helped make HDTV technology official in 1993, paving the way for modern digital broadcasting.
How does resolution relate to megapixels?
Resolution refers to the number of pixels in a frame (width × height). For example, a 1080p frame has approximately 2.07 million pixels, which is often advertised as roughly 2.1 megapixels.
