Docking Assessment in Molecular Modeling

In molecular modeling, the ability to predict how a novel compound binds to a target protein depends on the interdependence between sampling (the search for possible orientations) and the scoring function (the method used to evaluate the quality of those orientations). To ensure a docking protocol can reliably predict plausible poses or binding affinities, a rigorous assessment is required whenever experimental data is available.

Assessment strategies typically focus on several key metrics: calculating docking accuracy, correlating docking scores with experimental responses, determining enrichment factors, measuring the distance between ion-binding moieties and active site ions, and evaluating the presence of induce-fit models.

Key Facts

• RMSD is the primary metric for docking accuracy, with values below 2.0 Å generally indicating success.
• Enrichment Factor (EF) measures the ability to rank active compounds above inactive decoys.
• Prospective validation via pharmacological measurements (e.g., IC50) is the only conclusive proof of a technique's suitability.
• CASF provides a standardized framework for benchmarking docking power, scoring power, ranking power, and screening power.
• Molecular docking has contributed to the discovery of over 500 ligands for G protein-coupled receptors (GPCRs).

Evaluating Docking Accuracy

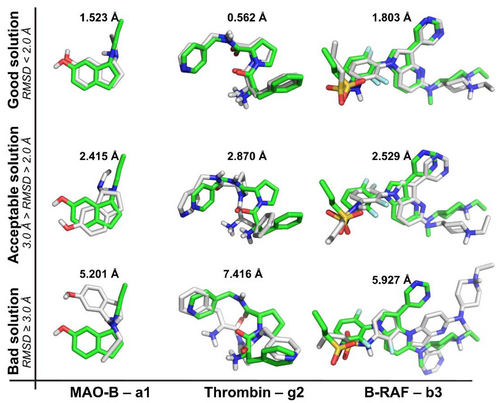

Docking accuracy (DA) measures a program's capacity to reproduce the binding pose of a ligand as observed experimentally. This fitness is quantified using the root-mean-square deviation (RMSD) of the non-hydrogen atoms between the predicted docked pose and the experimental structure.

While an RMSD of less than 2.0 Å is a common benchmark for success, this cutoff may be adjusted for larger molecules, as RMSD typically increases with the number of heavy atoms in a ligand.

However, RMSD is not a standalone metric. A comprehensive evaluation must also consider the plausibility of the generated conformations and the program's ability to reproduce essential ligand–receptor interactions, which is especially critical when employing deep-learning–based docking approaches.

Measuring Virtual Screening Performance

Virtual screening evaluates a protocol's ability to enrich known active ligands from a large database containing presumed non-binding "decoy" molecules. The goal is to rank a small number of active compounds within the top fraction of the screened list despite the overwhelming presence of decoys.

The Enrichment Factor (EF)

The Enrichment Factor (EF) quantifies early recognition capability. It compares the fraction of active compounds retrieved in a top-ranked subset to the fraction that would be expected by random selection. An EF value greater than 1 indicates performance superior to random chance.

The formula for EF is defined as:

EFx = (Nactive x / Nx) / (Nactive total / Ntotal)

• Nactive x: Number of active compounds in the top x% of the ranked list.
• Nx: Total number of molecules in the top x% of the ranked list.
• Nactive total: Total number of active compounds in the entire dataset.
• Ntotal: Total number of molecules in the entire dataset.

Specifically, EF 1% is frequently used to evaluate early recognition, as identifying actives at the very top of the list is paramount in virtual screening. Additionally, the area under the receiver operating characteristic (ROC) curve (AUC) is used to assess performance across the entire ranked list.

Prospective Validation and Benchmarking

The ultimate proof of a docking technique's suitability for a specific target is prospective study. This involves subjecting resulting hits to pharmacological validation, such as potency, affinity, or IC50 (the concentration of a drug that is required for 50% inhibition in vitro) measurements. For example, docking has been instrumental in discovering more than 500 ligands for GPCRs, which are targets for over 30% of marketed drugs.

Standardized Benchmark Sets

To assess the ability to reproduce binding modes determined by X-ray crystallography, researchers use various benchmark datasets:

• Astex Diverse Set: High-quality protein–ligand X-ray crystal structures.
• Directory of Useful Decoys (DUD): Used for virtual screening evaluation.
• LEADS-FRAG: Specifically for fragment-based docking.
• LIT-PCBA: Designed for machine-learning and virtual screening.
• LEADS-PEP: Used to evaluate the reproduction of peptide binding modes.

Furthermore, the Comparative Assessment of Scoring Functions (CASF) provides systematic benchmarking across four dimensions: docking power (pose prediction), scoring power (binding affinity prediction), ranking power, and screening power. CASF results indicate significant variability between programs, proving that no single method consistently outperforms all others across every criterion.

Metric/Set	Primary Purpose	Key Indicator/Focus
RMSD	Docking Accuracy	< 2.0 Å for successful pose reproduction
EF (Enrichment Factor)	Virtual Screening	EF > 1 indicates enrichment over random
AUC (ROC Curve)	Screening Performance	Overall ranking quality across the dataset
CASF	Systematic Benchmarking	Docking, scoring, ranking, and screening power
Prospective Study	Conclusive Validation	Pharmacological measurements (e.g., IC50)

Frequently Asked Questions

What is considered a successful RMSD value in docking?

Generally, an RMSD value below 2.0 Å is considered indicative of a successful docking model. However, for larger ligands with more heavy atoms, a more permissive cutoff may be applied.

Why is RMSD not sufficient for a full docking assessment?

RMSD only measures geometric deviation. A complete assessment must also evaluate the plausibility of the conformations and whether the program successfully reproduced key ligand–receptor interactions.

What does an Enrichment Factor (EF) of 1 signify?

An EF of 1 means the protocol is performing no better than random selection. An EF value greater than 1 indicates that the protocol is successfully enriching active compounds in the top-ranked results.

What is the role of the CASF in molecular docking?

The Comparative Assessment of Scoring Functions (CASF) provides a standardized way to compare different docking and scoring functions based on their power to predict poses, binding affinities, and ranking/screening performance.

How are docking hits conclusively validated?

Conclusive proof of suitability is achieved through prospective studies, where hits are subjected to pharmacological validation, including measurements of potency, affinity, or IC50.
