Digital Video Recorders: The Evolution of Home Television Recording
The ability to capture television programming and view it at a later time has transformed from a professional luxury into a standard consumer expectation. The Digital Video Recorder (DVR)—a device that records video in a digital format—has evolved from early tape-based prototypes to sophisticated hard-disk systems integrated into modern set-top boxes.
The Early Era of Digital Recording
The journey toward digital recording began in the 1980s with prototype high-definition (HD) recorders developed by industry leaders including Fujitsu, Hitachi, Sanyo, and Canon Inc. A significant milestone occurred in 1985 when Hitachi demonstrated a prototype digital video tape recorder (VTR) that utilized digital recording video tape for storage.
By 1987, the technology reached the commercial market with the Sony DVR-1000. This device was a digital video cassette recorder (VCR) that stored content on Sony's proprietary D-1 digital video cassettes.
The Shift to Hard-Disk-Based DVRs
The transition from tape to hard disks revolutionized how video was stored and accessed. In early 1995, Tektronix launched the "Profile" series PDR100 Video Disk Recorder, which utilized motion JPEG (a format that compresses each frame of a video as an individual JPEG image) for storage. This technology was adopted by NBC for the Atlanta Olympic Games and by Sweden's TV4 in Stockholm. The PDR100's innovation was recognized with an Engineering, Science & Technology Emmy Award in 1996.
Tektronix continued to iterate, releasing the PDR200 and PDR300 in 1998. The PDR300 notably utilized MPEG-2 (ISO/IEC 13818-2), a standard for digital compression of video and audio.
Parallel to commercial efforts, academic research pushed the boundaries. In 1998, a disk-based DVR prototype was developed at Stanford University's Computer Science department as part of Edward Y. Chang's PhD dissertation. This prototype was demoed to major tech firms, including Apple, Intel, and Sony.
The Consumer Explosion: TiVo and ReplayTV

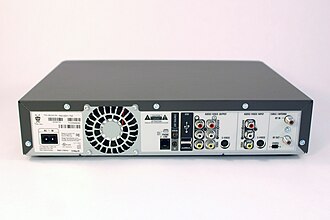

The consumer market shifted dramatically at the 1999 Consumer Electronics Show (CES) in Las Vegas with the launch of TiVo and ReplayTV. While ReplayTV won "Best of Show" in the video category and attracted investment from Netscape co-founder Marc Andreessen, TiVo achieved greater commercial success. TiVo began shipping its first units on March 31, 1999.
Microsoft also entered the space, providing software for Dish Network's DISHplayer receivers, which gained full DVR capabilities by the end of 1999. Despite the excitement, early adoption was modest; Forrester Research estimated market penetration at less than 100,000 units by the end of 1999.
Hard-disk DVRs introduced several transformative features over traditional VCRs, including:
- Time shifting: The ability to delay viewing a broadcast.
- Live pausing: Stopping a live broadcast to resume later.
- Chasing playback: Watching the beginning of a recording while it is still being captured.
- Instant replay and the ability to skip advertisements.
Integration with Video Services
Over time, DVR functionality merged with service provider hardware. In the UK, these are often called "plus boxes," such as Sky+ (now replaced by Sky Q) and Virgin Media's V+. Other global providers, including Multichoice in South Africa via the DStv platform and Astro in Malaysia (with the now-phased-out Astro MAX), integrated these features into their offerings.
When a DVR is tied to a digital television service, the process is more efficient because the signal is already a digitally encoded MPEG stream. The DVR simply stores this stream directly to the disk without needing further encoding. However, this integration allows providers to implement restrictions, such as non-skippable ads or recordings that expire automatically.
In the United States, the FCC ruled that as of July 1, 2007, consumers could purchase "navigation devices" (set-top boxes) from third parties rather than being forced to rent them from cable companies, though security functions remain under the operator's control.
Advanced Capabilities and Dual Tuners
A major technical leap occurred around 2001-2003 with the introduction of dual tuners. A tuner is the component that allows a device to lock onto a specific broadcast frequency. Dual-tuner systems allow users to:
- Record one live program while watching another.
- Record two programs simultaneously while watching a previously recorded show.
Some high-end models, such as those from UEC and Scientific Atlanta, even featured triple tuners, allowing users to view two programs while recording a third. In Europe, modern gateways often support whole-house recording, sending content to Network Attached Storage (NAS) or USB drives to be shared across smartphones, tablets, and Smart TVs.
| Era/Year | Key Technology/Device | Primary Storage/Format | Major Innovation |
|---|---|---|---|
| 1980s | Hitachi/Sony Prototypes | Digital Tape (D-1) | First digital HD recording |
| 1995-1998 | Tektronix Profile | Hard Disk (Motion JPEG/MPEG-2) | Professional disk-based recording |
| 1999 | TiVo / ReplayTV | Hard Disk | Consumer-grade time shifting |
| 2001-2003 | Sky+ / Dual-Tuner DVRs | Hard Disk | Simultaneous recording and viewing |
Key Facts
- The first commercial digital video recorder was the Sony DVR-1000 (1987).
- TiVo began shipping consumer units on March 31, 1999.
- Hard-disk DVRs enabled time shifting, pausing live TV, and chasing playback.
- Dual tuners allow for recording one program while watching another.
- By 2010, DVRs were used by 38 percent of all US TV households.
Frequently Asked Questions
What is the difference between a VCR and a DVR?
Unlike VCRs, which use magnetic tape, hard-disk-based DVRs store video digitally. This allows for more convenient time shifting, the ability to pause live television, and the capacity to skip advertisements instantly.
What does a dual-tuner DVR allow a user to do?
A dual-tuner DVR has two independent tuners, enabling the user to record a live program while simultaneously watching another live program, or to record two programs at once while viewing a previously recorded one.
What is "chasing playback"?
Chasing playback is a DVR feature that allows a viewer to start watching a recording from the beginning before the broadcast has actually finished.
How do DVRs handle digital television signals?
Since digital television signals are already encoded as MPEG streams, the DVR does not need to perform additional encoding; it simply stores the digital stream directly to the hard disk.
Why did some DVR features, like commercial skipping, disappear from some devices?
Legal actions by media companies forced some manufacturers, such as ReplayTV, to remove features like automatic commercial skipping and internet recording sharing.
