The Evolution of the Crank: From Ancient Tools to Modern Engines
At its simplest level, a crank is an arm attached at a right angle to a rotating shaft. This clever mechanical design allows circular motion to be imparted to a shaft, or received from one. When a crank is paired with a connecting rod (or conrod)—a rod attached to the end of the crank by a pivot—it gains the ability to convert circular motion into reciprocating motion (back-and-forth movement), or vice versa.
The physical form of a crank can vary significantly. It might be a permanent, bent portion of the shaft itself, or a separate arm or disk attached to it. In many everyday applications, the term "crank" refers to human-powered devices where a person's arm or leg acts as the connecting rod, applying force to turn an axle.
Key Facts
- Core Function: Converts circular motion to reciprocating motion (and vice versa) when used with a connecting rod.
- Ancient Origins: Evidence of crank-like mechanisms appears in Han dynasty China (as early as 202 BC) and ancient Greek sawmills.
- Mechanical Milestone: The combination of the crank and connecting rod is a fundamental component for the development of the steam engine.
- Human Power: Common manual examples include bicycle pedals, hand winches, and pencil sharpeners.
Common Applications of Cranks
Cranks are integrated into a vast array of technologies, ranging from simple household items to complex industrial machinery. They are generally categorized by the power source used to operate them.
Hand-Powered Cranks
These devices rely on manual human effort to function. Common examples include:
- Mechanical pencil sharpeners
- Hand winches for sailboats or lifting
- The carpenter's brace (a compound crank)
- Handcycles and manual car window cranks
- Starting handles for vintage automobiles
Foot-Powered Cranks
Some mechanisms utilize the strength of the legs to provide continuous motion, such as the crankset that drives a bicycle via the pedals or the treadle mechanism in a sewing machine.
Engine Integration
In modern engineering, the crankshaft is a vital component of reciprocating piston engines. It converts the linear motion of the pistons into the rotational motion required to drive the vehicle.
A Global History of Mechanical Motion
The history of the crank is a global story of innovation, appearing in various forms across different civilizations.
Early Innovations in Asia
In China, evidence of crank-operated technology dates back to the Western Han dynasty (202 BC – 9 AD). Archaeological finds, such as glazed-earthenware tomb models, suggest that crank-operated winnowing fans were in use during this era. The Chinese utilized the crank-and-connecting rod system in agricultural machinery, textile machinery, and ancient blasting apparatus. While early rotary querns (grain mills) used a simple hand-crank, the evolution toward the full crank-and-connecting rod mechanism eventually enabled more complex tasks like silk-reeling and water-powered bellows.
![Tibetan operating a quern (1938). The upright handle of such rotary handmills, set at a distance from the centre of rotation, works as a crank.[1][2]](/images/eb/cc/ebccf7e134a2fc87ad60e411875ec0c92833966c7561175d2432e6cb40212eec.jpg)
The Mediterranean and the Middle East
While ancient Egyptian drills from the Old Kingdom (2686–2181 BCE) resembled cranks, they did not function as "true" cranks. However, significant advancements appeared in the Greco-Roman world. The Hierapolis sawmill in Roman Asia (3rd century AD) provides striking evidence of a waterwheel powering saws through a system of connecting rods and cranks. Similar stone sawmills have been identified in Gerasa and Ephesus.

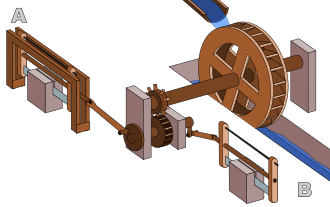

![Hierapolis sawmill (3rd century AD), a machine that combine a crank with a connecting rod.[11]](/images/52/e0/52e0083269bae5fca6e32699d85fe306e5754ce73c26f267149fa1cf2b637727.webp)
In the Roman era, iron cranks have been excavated in places like Augusta Raurica, Switzerland, and near Munich, Germany, often associated with millstones. By the Islamic Golden Age, the engineer Al-Jazari (1136–1206) described sophisticated crank and connecting rod systems in his water-raising machines, including a twin-cylinder pump that incorporated a crankshaft.
![Roman crank handle from Augusta Raurica, dated to the 2nd century AD[29]](/images/3d/d7/3dd7fd3c3853b08ed66299ed43994936504699efe5c8200f730b16f688aa311d.jpg)
European Development and the Renaissance
During the Middle Ages, the crank appeared in various manuscripts, from descriptions of musical instruments to the "wheel of destiny" in artistic depictions. By the 15th century, the crank became a staple of European military and industrial engineering. German engineer Konrad Kyeser documented cranked windlasses for crossbows and cranked Archimedes screws for water-lifting.

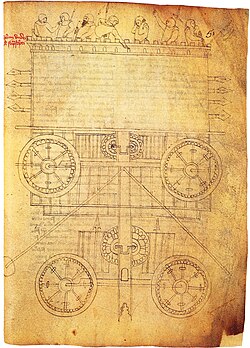

The Renaissance saw the refinement of the compound crank. Engineers like the "Anonymous of the Hussite Wars" documented the use of double compound cranks and the addition of flywheels—heavy rotating wheels used to maintain momentum and overcome "dead-spots" in the mechanical cycle. This era also saw the development of paddle-wheel boats powered by manual cranks.

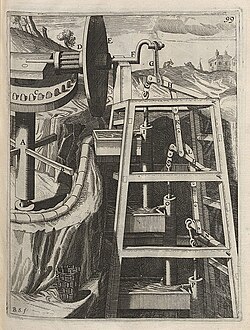

By the 16th century, the crank was a standard element in technological treatises. Works by Agostino Ramelli and Georg Andreas Böckler illustrated dozens of different machines utilizing these mechanisms, including advanced water-raising pumps.
The 20th Century and Beyond
As electricity and internal combustion became dominant, the manual crank transitioned from a primary mover to a secondary or specialized tool. Before the 1930s, most phonographs required a hand crank to wind their clockwork motors. In the automotive world, hand-cranked "starting handles" were essential for early internal combustion engines until electric starters became standard. Even as late as 1948, the Citroën 2CV continued to incorporate a crank.
Summary of Mechanical Evolution
| Era/Region | Key Application | Significance |
|---|---|---|
| Western Han Dynasty (China) | Winnowing fans & textile machinery | Early use of crank-and-connecting rod systems. |
| Roman Era (Asia Minor/Europe) | Stone sawmills & rotary mills | Integration of water power with crank mechanisms. |
| Middle Ages (Europe) | Grindstones & musical instruments | Increased documentation in manuscripts. |
| Renaissance (Europe) | Military siege engines & paddle boats | Development of the compound crank and flywheel. |
| Early 20th Century | Automobiles & phonographs | Transition from manual starting to electric systems. |
Frequently Asked Questions
What is the difference between a crank and a connecting rod?
A crank is the arm that rotates around a shaft to provide or receive circular motion. The connecting rod is the link attached to the end of the crank that facilitates the conversion between circular and reciprocating (linear) motion.
How does a crank help an engine run?
In a reciprocating engine, the pistons move up and down in a straight line. The crank (specifically the crankshaft) takes that linear motion and converts it into the rotational motion needed to turn the wheels of a vehicle.
Why was the flywheel important for cranks?
In early mechanical designs, cranks could hit a "dead-spot" where the force applied was momentarily ineffective. A flywheel provides rotational inertia, helping the machine carry through these dead-spots to maintain smooth, continuous motion.
Were cranks used in ancient times?
Yes. Evidence shows that crank-like mechanisms were used in China during the Han dynasty for agricultural tools, and in the Roman Empire for sawmills and grinding stones.
What is a compound crank?
A compound crank is a more complex arrangement, often seen in tools like the carpenter's brace, which allows for more efficient transfer of force and motion.
