Cache Technology: Optimizing Computing Speed and Data Retrieval

In the world of computing, speed is often limited by how quickly data can be moved from storage to the processor. A cache is a hardware or software component designed to solve this bottleneck by storing copies of data so that future requests can be served faster. Whether it is the result of a complex calculation or a copy of a file from a slower disk, caching ensures that the system doesn't have to repeat expensive operations.

The efficiency of a cache is measured by two primary outcomes: a cache hit, which occurs when the requested data is found in the cache, and a cache miss, which happens when the system must retrieve the data from the slower backing store. The higher the percentage of hits (the hit rate), the faster the overall system performance.

Key Facts

Purpose: Reduces latency and increases throughput by avoiding repeated access to slow backing stores.
Locality of Reference: Caches work because applications typically access data that was recently used (temporal locality) or data stored nearby (spatial locality).
Hardware vs. Software: Caches can be physical (CPU, SSD) or logical (web browsers, OS kernels).
Write Policies: Determine when data changes in the cache are mirrored to the main storage.
Prefetching: The process of loading data into the cache before it is explicitly requested to bypass latency.

The Motivation Behind Caching

The primary drivers for implementing a cache are latency (the delay before a transfer of data begins) and throughput (the amount of data moved in a given time). For example, a modern 4 GHz processor may take hundreds of clock cycles to access DRAM. By reading large chunks of data into a cache, the system can serve subsequent requests almost instantaneously.

Furthermore, caching improves throughput by combining many small, fine-grained transfers into larger, more efficient requests. This is particularly effective in DRAM circuits, where a wider data bus can be leveraged to move more information at once.

How Caching Works

A cache consists of a pool of entries. Each entry contains the actual data and a tag. The tag acts as a unique identifier that links the cached copy to its original location in the backing store.

When a client (such as a CPU or web browser) needs data, it first checks the cache for a matching tag. If found, it is a hit; if not, it is a miss. Following a miss, the system retrieves the data from the backing store and typically copies it into the cache for future use.

Diagram showing data residing inside a CPU's cache and their corresponding copy in the RAM, identified by their tags

Write Policies and Miss Handling

Because data is often modified, the system must decide how to update the backing store. This is handled by write policies:

Write-through: Data is written to both the cache and the backing store simultaneously.
Write-back: Data is written only to the cache initially. The backing store is updated only when the cache block is replaced.

Additionally, write-miss policies determine what happens when a write occurs on data not currently in the cache:

Write allocate: The data is loaded into the cache first, then updated. This is typically paired with write-back caches.
No-write allocate: The data is written directly to the backing store without entering the cache. This is typically paired with write-through caches.

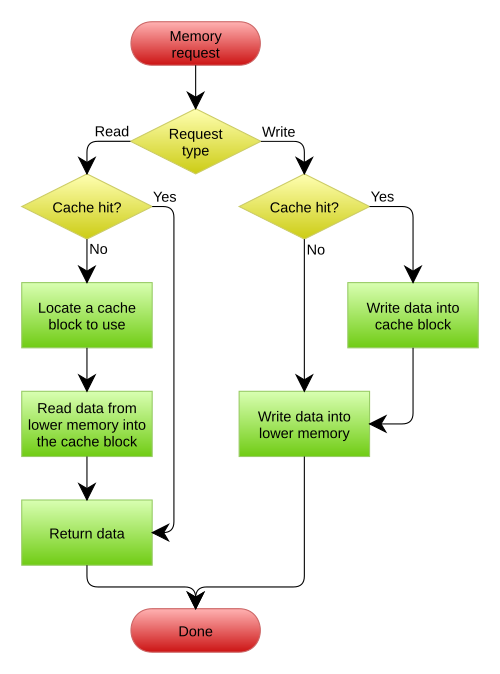

A write-through cache without write allocation

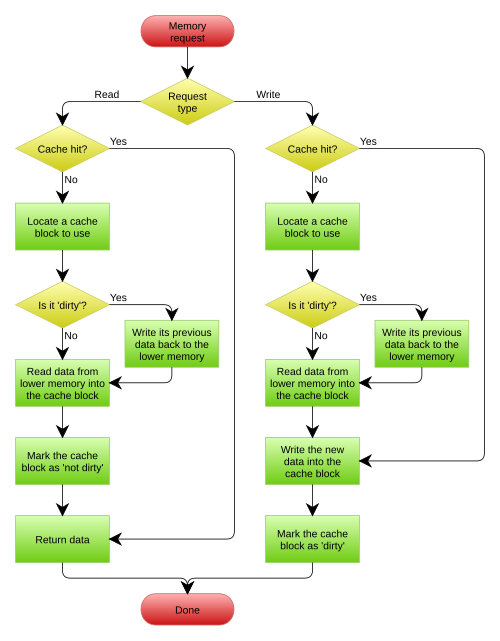

A write-back cache with write allocation

Prefetching and Paging

To further reduce latency, some systems use prefetching. Instead of waiting for a request (demand paging), the system guesses which data will be needed next and loads it in advance. This is highly effective for sequential data reads from disks or DRAM.

Hardware and Software Implementations

Caching is ubiquitous across different layers of technology, from the silicon of a processor to the global infrastructure of the internet.

Hardware Caches

CPU Cache: Modern processors use cascaded levels (L1, L2, L3, and sometimes L4) to bridge the speed gap between the CPU and RAM. Specialized versions include the D-cache (data), I-cache (instructions), and the Translation Lookaside Buffer (TLB), which caches virtual-to-physical address translations.
GPU Cache: Graphics units use texture caches and techniques like swizzling to improve 2D locality of reference.
DSPs: Digital Signal Processors often use a Modified Harvard architecture with split L1 caches.

Software Caches

Disk and Page Caches: The OS kernel manages the page cache in RAM, while disk controllers use on-board caches for write sequencing.
Web Caching: Browsers and proxy servers store web pages and images locally to reduce bandwidth and server load. Content Delivery Networks (CDNs) scale this globally by replicating content on servers near the end-user.
Memoization: A programming technique that stores the results of expensive function calls in a lookup table to avoid redundant computations.
Cloud Storage Gateways: These provide high-speed local access to frequently used data stored in cloud object storage (e.g., Amazon S3).

Cache Type	Backing Store	Primary Goal	Implementation
CPU Cache	DRAM (Main Memory)	Reduce CPU stall cycles	Hardware (SRAM)
Web Cache	Remote Web Server	Reduce network latency	Software (Disk/RAM)
TLB	Page Tables in RAM	Fast address translation	Hardware
Memoization	Computation/Algorithm	Avoid redundant CPU work	Software (Lookup Table)

Frequently Asked Questions

What is the difference between a buffer and a cache?

While both increase performance, their intent differs. A buffer is primarily used to temporarily hold data while it is being moved between devices of different speeds. A cache's sole purpose is to reduce accesses to slower storage by keeping frequently used data readily available.

What happens during a cache miss?

During a cache miss, the system fails to find the requested data in the cache. It must then perform a more "expensive" (slower) access to the backing store to retrieve the data, which is then typically stored in the cache for future requests.

How does a CDN act as a cache?

A Content Delivery Network (CDN) replicates static content (like images and videos) across multiple global servers. When a user requests a file, the CDN serves it from the nearest cached copy rather than fetching it from the origin server, reducing distance and latency.

What is cache coherence?

Cache coherence refers to the communication protocols used to ensure that when data is updated in one cache, other copies of that data in different caches are updated or invalidated so that no system uses "stale" (out-of-date) data.
