Cab signalling is a critical railway safety system designed to communicate real-time track status and condition information directly to the locomotive's crew compartment. Unlike traditional systems that rely solely on external markers, cab signalling provides a continuous, easy-to-read display for the driver, ensuring they are always aware of the state of the track ahead.

While basic systems simply mirror trackside signals, sophisticated versions provide allowable speeds, the location of nearby trains, and dynamic track data. Many of these systems are integrated into comprehensive train protection frameworks that can automatically apply brakes if an operator fails to respond to a dangerous condition. By providing a constant reminder of the last wayside signal or the current track state, cab signalling significantly improves upon traditional wayside systems, which require drivers to visually spot signals along the right-of-way.

Key Facts

  • Primary Purpose: Enforces safe separation between trains and ensures they slow or stop before restrictive situations.
  • Core Types: Divided into intermittent (updated at specific points) and continuous (constant data flow) systems.
  • Modern Standard: High-speed rail in Japan, France, and Germany utilizes in-cab signalling because wayside signals are impossible to see at high velocities.
  • Interoperability: The European Train Control System (ETCS) aims to standardize diverse national systems across Europe.
  • US Standard: The coded track circuit system, developed by the Pennsylvania Railroad (PRR) and Union Switch & Signal (US&S), became the de facto North American standard.

Evolution and History

Experimental cab signalling began in the United Kingdom in the 1910s, followed by the United States in the 1920s and the Netherlands in the 1940s. As rail speeds increased, the impracticality of sighting wayside signals led modern high-speed networks to integrate in-cab signalling from their inception.

In North America, the adoption of these systems was accelerated by a 1922 Interstate Commerce Commission (ICC) ruling requiring automatic train control on passenger divisions. While some railroads opted for intermittent inductive devices, the Pennsylvania Railroad pioneered continuous cab signal technology, which eventually dominated the region.

Types of Cab Signalling Systems

Cab signalling is categorized by how frequently the information is updated in the driver's compartment.

Intermittent Cab Signals

Intermittent systems, such as the German Indusi and Dutch ATB-NG, update the display only at discrete points along the line. Between these points, the display remains static, reflecting the last received update. While useful, this can lead to situations where the displayed information becomes outdated before the train reaches the next update point.

Continuous Cab Signals

Continuous systems provide a constant flow of information, allowing the display to change instantly to reflect new track conditions. These systems are inherently more fail-safe; if the train stops receiving the continuous signal, the system can trigger a safety response. They are also more effectively paired with automatic train control (ATC) to enforce precise speed restrictions.

Information Transmission Methods

To move data from the wayside to the train, several different technologies are employed:

  • Electric or Magnetic: Used in early intermittent systems, such as the British Rail Automatic Warning System (AWS), which uses magnetic fields to indicate hazards.
  • Inductive: Non-contact systems using beacons or induction loops. The German Indusi is an intermittent example, while the General Railway Signal Company's ATC is a continuous version.
  • Coded Track Circuits: These use the running rails as both train detectors and information transmitters. Examples include the PRR standard and the French TVM (digital). The German LZB system uses auxiliary wires in the track center for similar purposes.
  • Transponders: Using fixed antenna loops called balises, these systems transmit complex datagrams. Examples include the Dutch ATB-NG and British automatic train protection.
  • Wireless: The most modern approach, relying on fixed wireless transmitters. This is central to Communications-Based Train Control (CBTC) and ETCS levels 2 and 3.

The Cab Display Unit (CDU)

The Cab Display Unit (CDU), known as the Driver Machine Interface (DMI) in ERTMS standards, is the physical interface the driver interacts with. Early units showed miniature versions of wayside signals, but modern units typically display permitted speeds.

Many modern CDUs integrate the speedometer with the speed limit, showing the current speed relative to the allowed limit. Advanced digital systems can even display braking curves, showing the minimum braking required to reach a target speed. Additionally, CDUs often integrate with alertness systems to ensure the driver remains attentive.

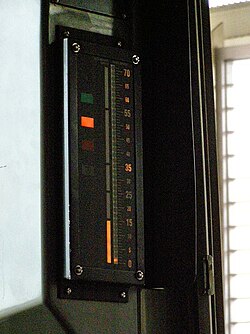

Cab signal display unit on a Chicago Transit Authority 'L' train. The vertical light bar in the middle of the signal indicates the maximum permitted speed for the section of track where the lead car is currently located.
Cab signal display unit on a Chicago Transit Authority 'L' train. The vertical light bar in the middle of the signal indicates the maximum permitted speed for the section of track where the lead car is currently located.
CDU used on Metro-North is integrated with the speedometer indicating the train speed, and the signals indicate the speed limit.
CDU used on Metro-North is integrated with the speedometer indicating the train speed, and the signals indicate the speed limit.
The ETCS driver machine interface
The ETCS driver machine interface

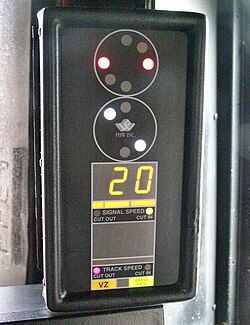

Amtrak ACSES-capable cab signal display unit showing both a miniature signal and associated speed limit.
Amtrak ACSES-capable cab signal display unit showing both a miniature signal and associated speed limit.

Cab Signalling in the United States

The US landscape was shaped by the competition between inductive loop systems and the PRR's pulse code technology. While railroads like the New York Central and Florida East Coast experimented with inductive loops, the PRR system's large-scale adoption made it the national standard.

Recent advancements include the Advanced Civil Speed Enforcement System (ACSES) used by Amtrak for the Acela Express on the Northeast Corridor (NEC). ACSES acts as an overlay to existing systems, using transponders to enforce both permanent and temporary speed restrictions at curves and other geographic features. It compares the "signal speed" from the pulse code system with the "civil speed" and enforces whichever is lower.

Technology Type Update Frequency Transmission Medium Key Example
Intermittent Discrete Points Magnetic/Inductive Beacons German Indusi
Continuous Constant Running Rails/Coded Circuits PRR Standard
Transponder Point-based (High Data) Balises Dutch ATB-NG
Wireless Constant Radio/Wireless Transmitters ETCS Level 2/3

Frequently Asked Questions

What is the difference between intermittent and continuous cab signalling?

Intermittent systems only update the driver's display at specific locations along the track, meaning the information can become outdated. Continuous systems provide a constant stream of data, allowing the display to update instantly as track conditions change.

Why is cab signalling necessary for high-speed trains?

At very high speeds, it is physically impossible for a driver to reliably see and react to traditional wayside signals. In-cab signalling brings the information directly into the driver's line of sight.

What is a balise?

A balise is a fixed antenna loop or transponder beacon placed between the rails that transmits digital datagrams to a train as it passes overhead.

How does the Amtrak ACSES system work?

ACSES is an overlay system that uses transponders to monitor civil speed limits (like those at curves). It processes both the signal speed and the civil speed, enforcing the lower of the two to ensure safety.

What is the purpose of the Driver Machine Interface (DMI)?

The DMI (or CDU) is the screen or display in the cab that informs the driver of the permitted speed, track status, and system mode, often integrating this data with the train's speedometer.
